Disassembly And Assembly

For shift lever assembly disassembly procedures, follow numbered steps in illustration. See Fig 1. For shift lever assembly assembly procedures, follow numbered steps in illustration in reverse order.

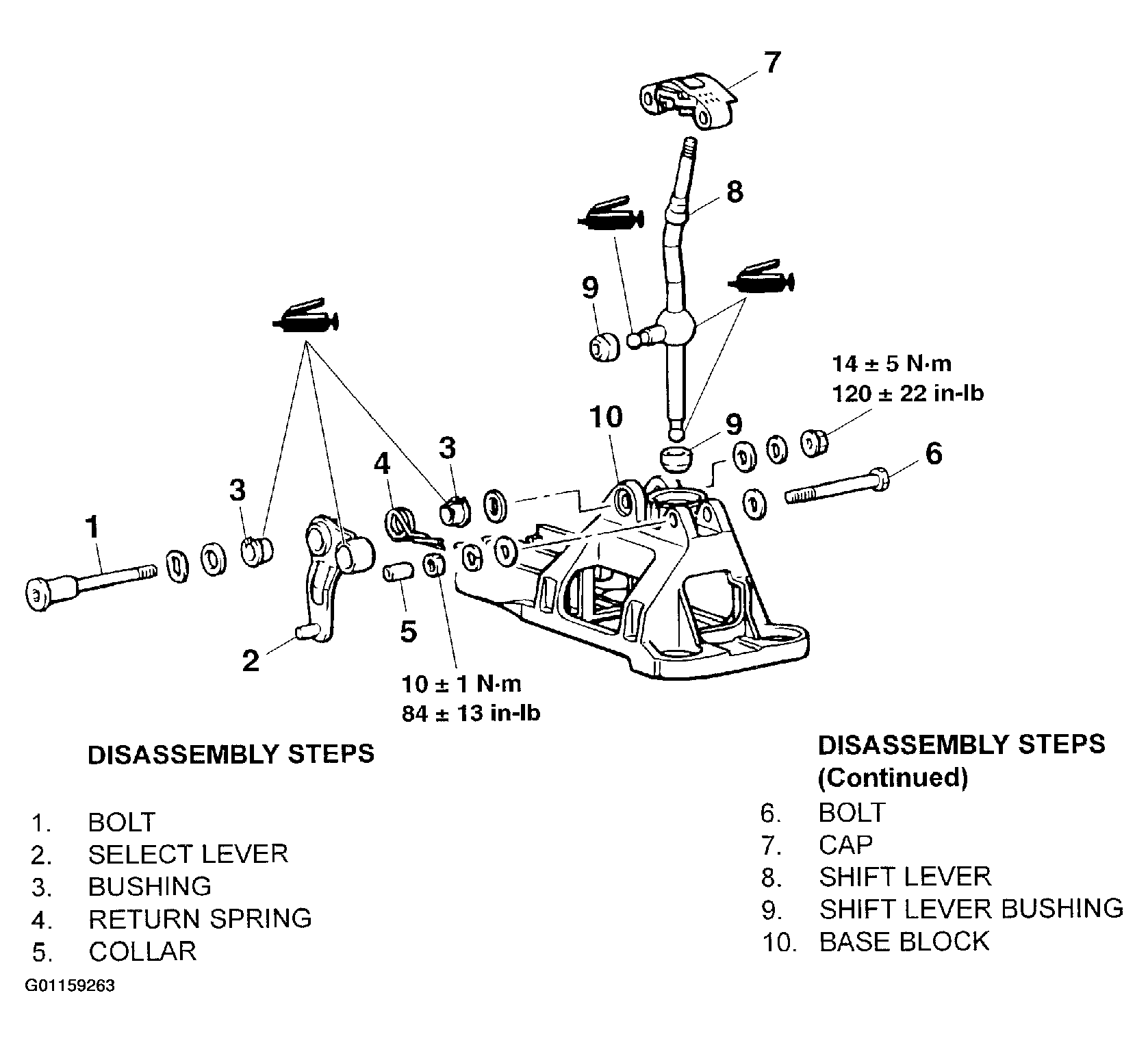

Fig 1: Exploded View Of Shift Lever Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
