Door Lock Actuator Input Circuit Connector End Views

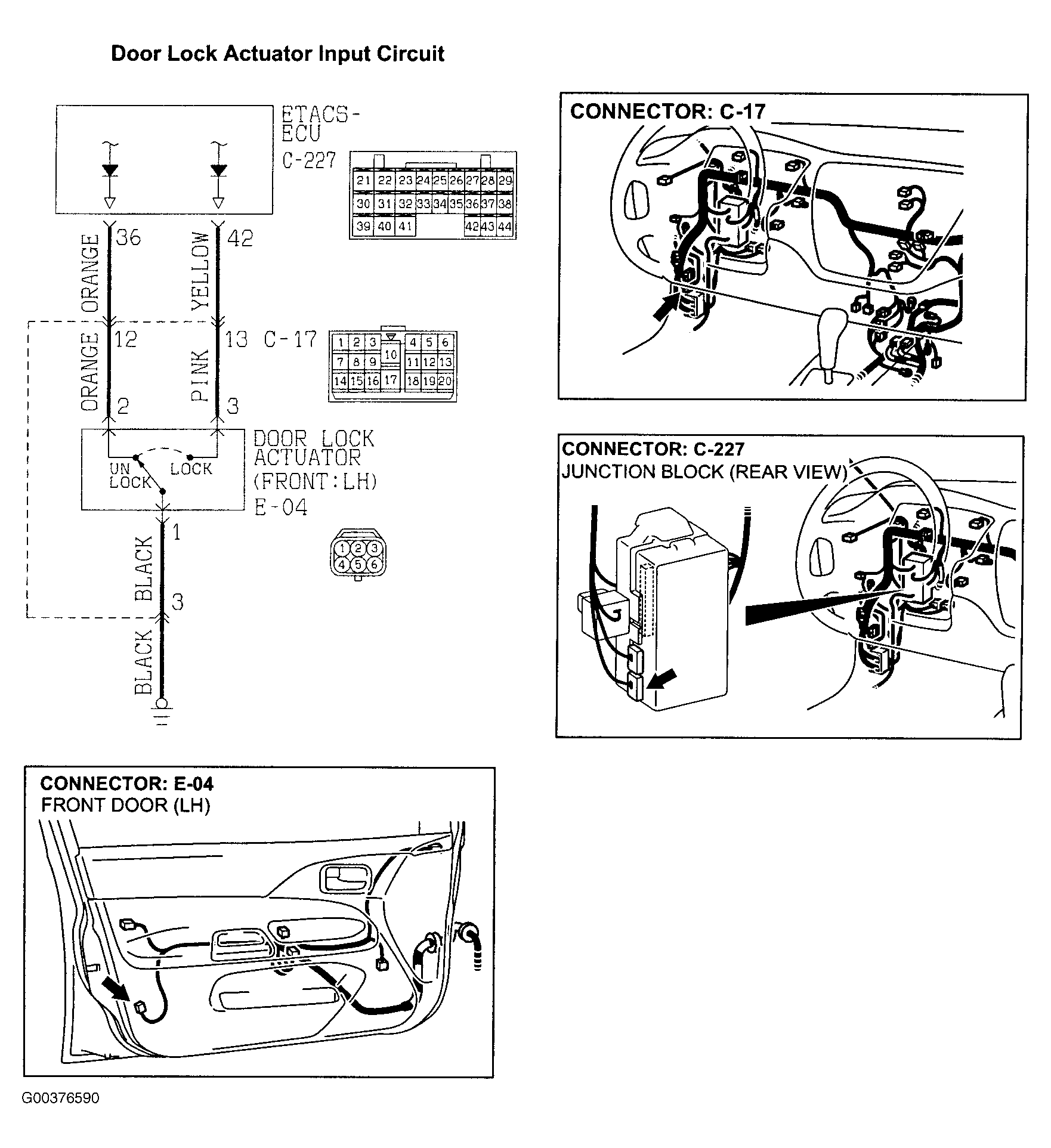

Fig 1: Door Lock Actuator Input Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
