Disassembly And Assembly: Notes

For power steering gear box and linkage disassembly procedures, follow numbered steps in illustration. See Fig 1. For power steering gear box and linkage assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling power steering gear box and linkage. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINTS .

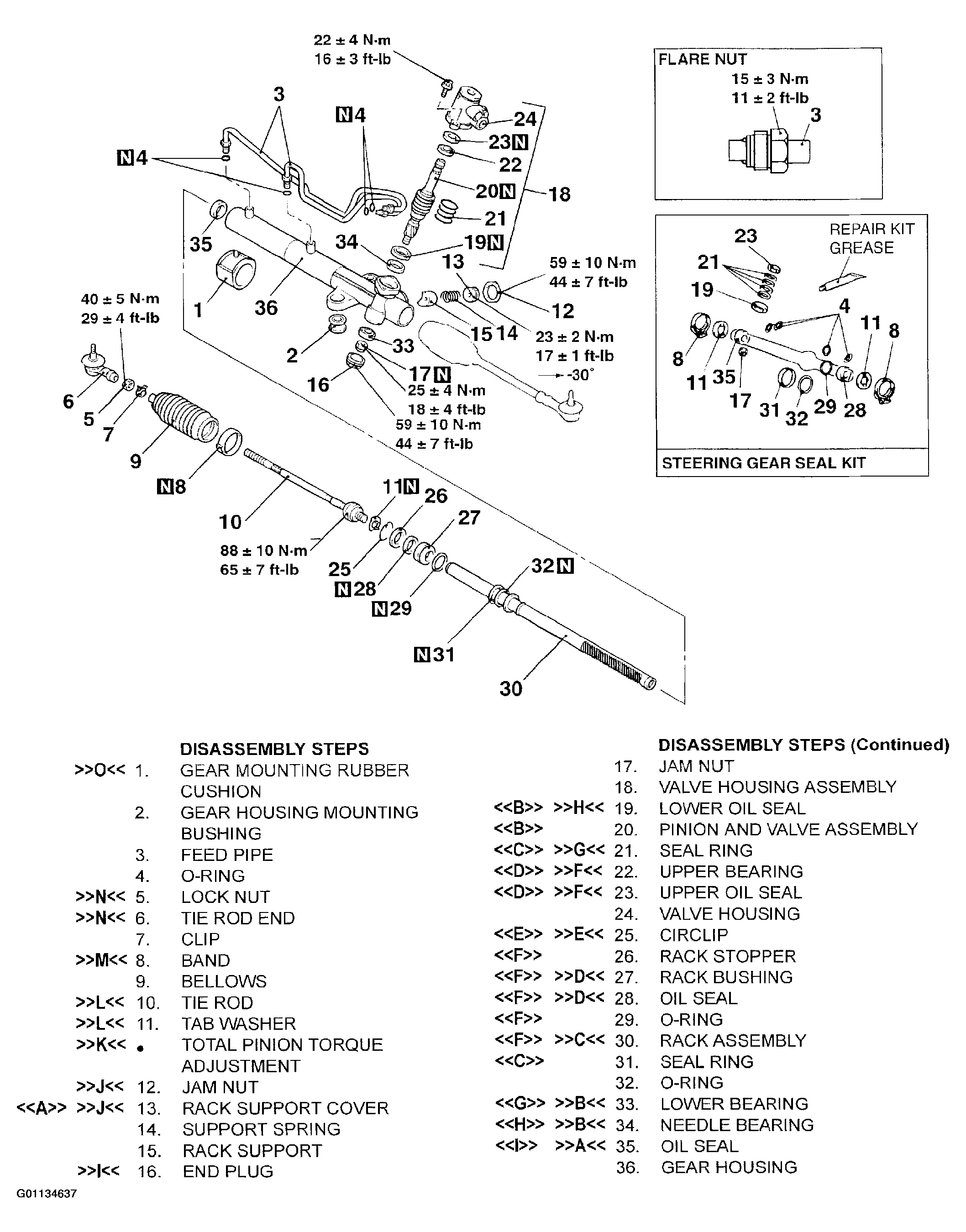

Fig 1: Exploded View Of Steering Gear Box & Linkage
G01134637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
