Fastener Tightening Specifications

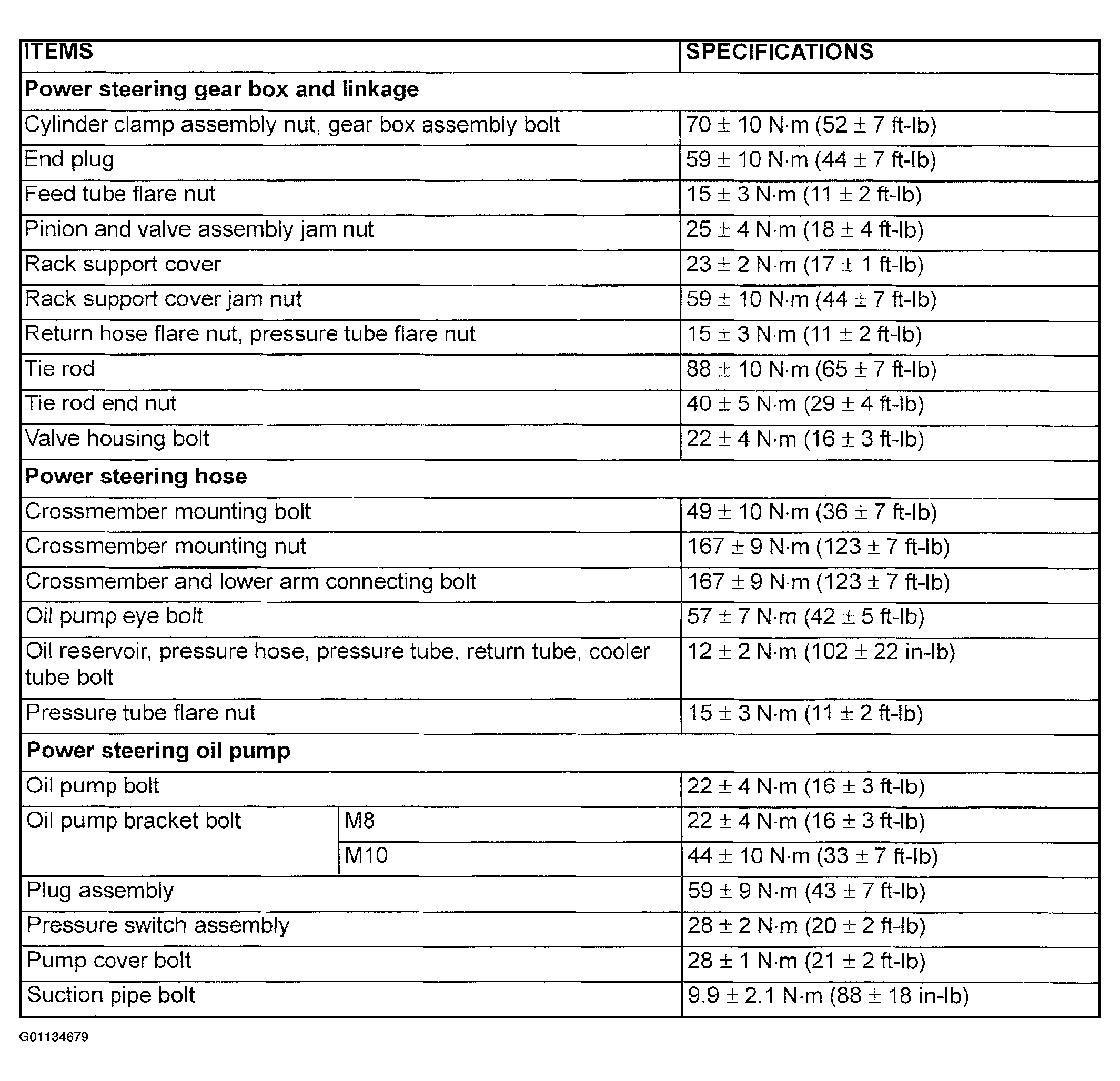

Fig 1: Torque Specifications Table (1 Of 2)
G01134679Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

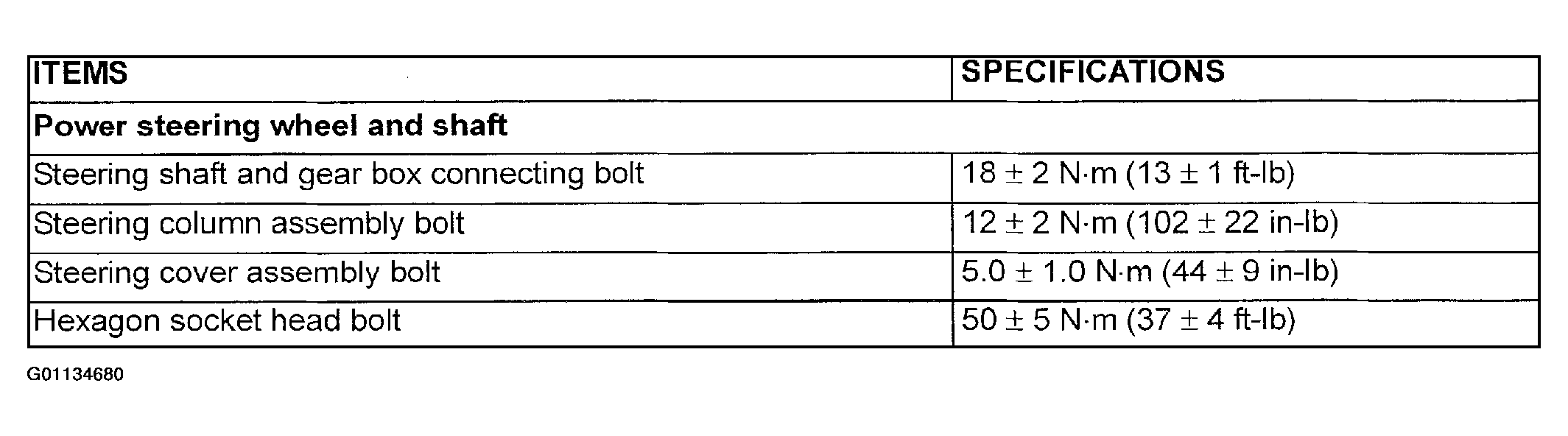

Fig 2: Torque Specifications Table (2 Of 2)
G01134680Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
