Removal And Installation: Notes

CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

For automatic transaxle key interlock and shift lock mechanisms removal procedures, follow numbered steps in illustration. See Fig 1 . For automatic transaxle key interlock and shift lock mechanisms installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing automatic transaxle key interlock and shift lock mechanisms. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINTS .

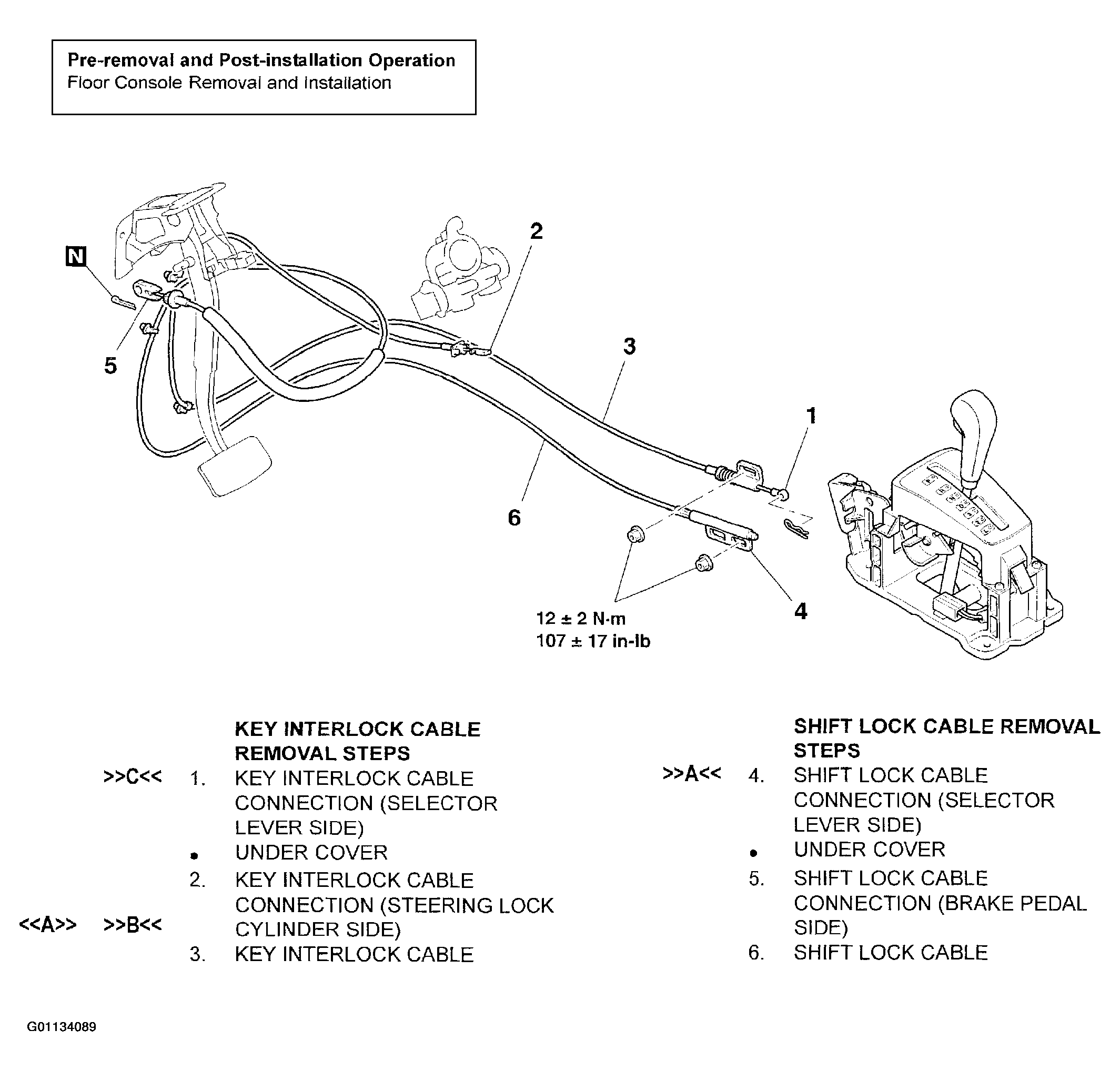

Fig 1: Removing & Installing Automatic Transaxle Key Interlock & Shift Lock Mechanisms

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
