A/T Fluid Temperature Sensor Continuity Check

Remove the A/T fluid temperature sensor.
Measure the resistance between terminals No. 1 and No.2 of the A/T control solenoid valve assembly connector.
Standard value:

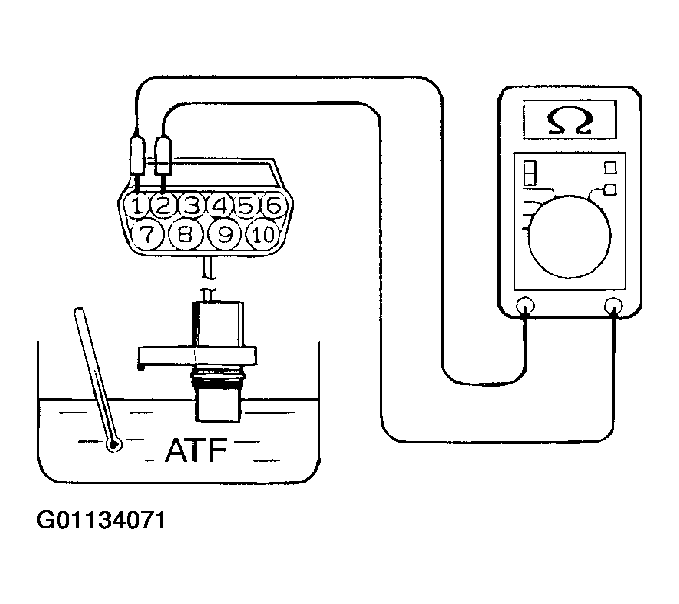

Fig 1: Checking Automatic Transaxle Fluid Temperature Sensor (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

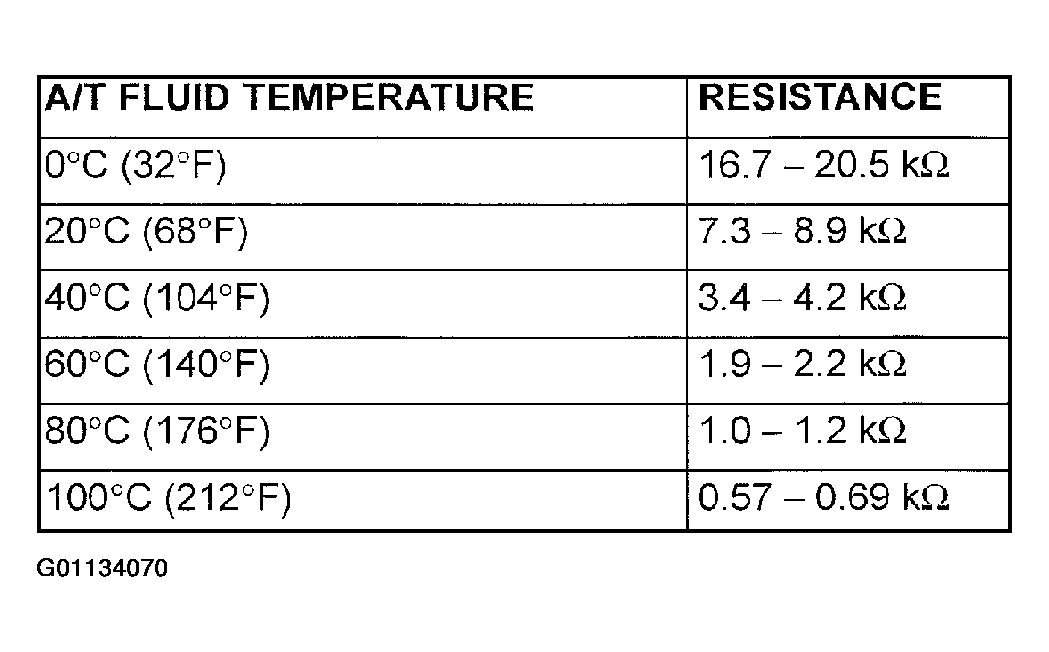

Fig 2: Checking Automatic Transaxle Fluid Temperature Sensor (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the A/T fluid temperature sensor resistance is not consistent with the fluid temperature replace A/T fluid temperature sensor.

NOTE: The N range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or higher, and then stops flashing when the temperature drops below approximately 115°C (238°F).
