Disassembly And Assembly

For transaxle control disassembly procedures, follow numbered steps in illustration. See Fig 1 . For transaxle control assembly procedures, follow numbers steps in illustration in reverse order.

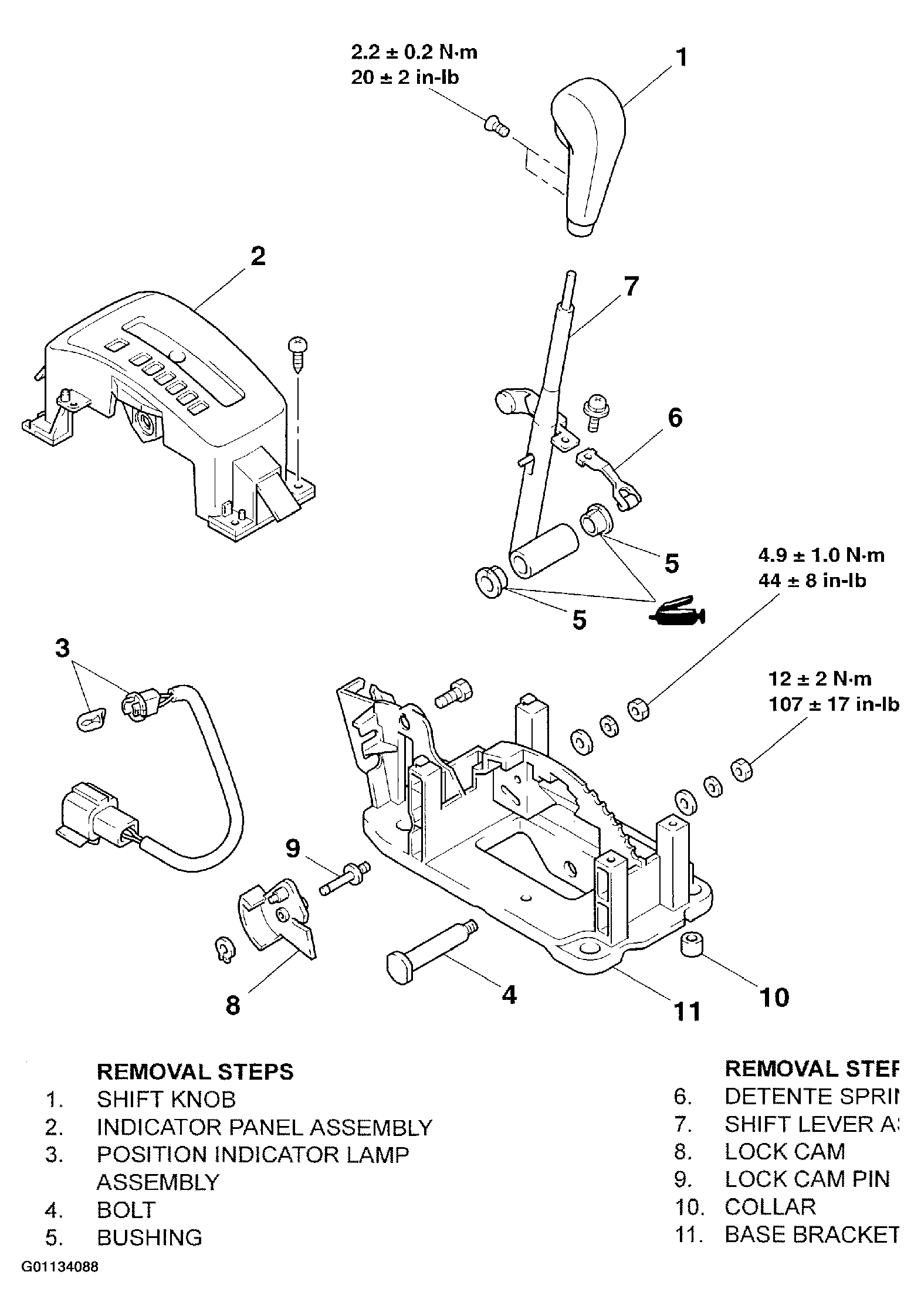

Fig 1: Exploded View Of Transaxle Control

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
