>> B << Key Interlock Cable (Selector Lever Side) Installation

1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.

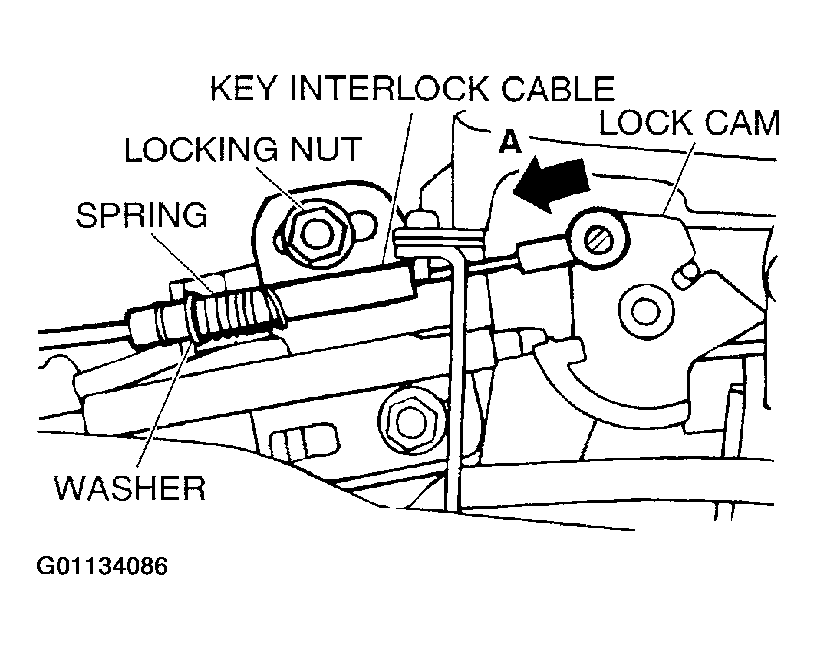

   Fig 1: Installing Key Interlock Cable (Selector Lever Side)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to the specified torque.

Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)
