>> C << Transaxle Control Cable (Transaxle Side) Installation

  1. Shift the selector lever to "N" position.
  2. Gently push the transaxle control cable in the direction of the arrow until the cable is taut. Tighten the nut at the specified torque.

Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)

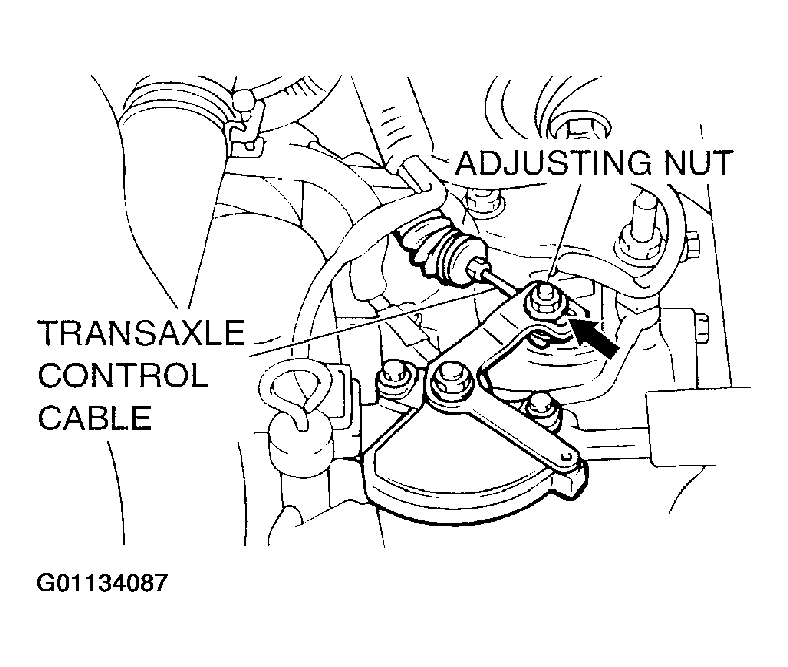

Fig 1: Installing Transaxle Control Cable (Transaxle Side)
G01134087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
