>J< 5TH Speed-Reverse Synchronizer Hub Installation

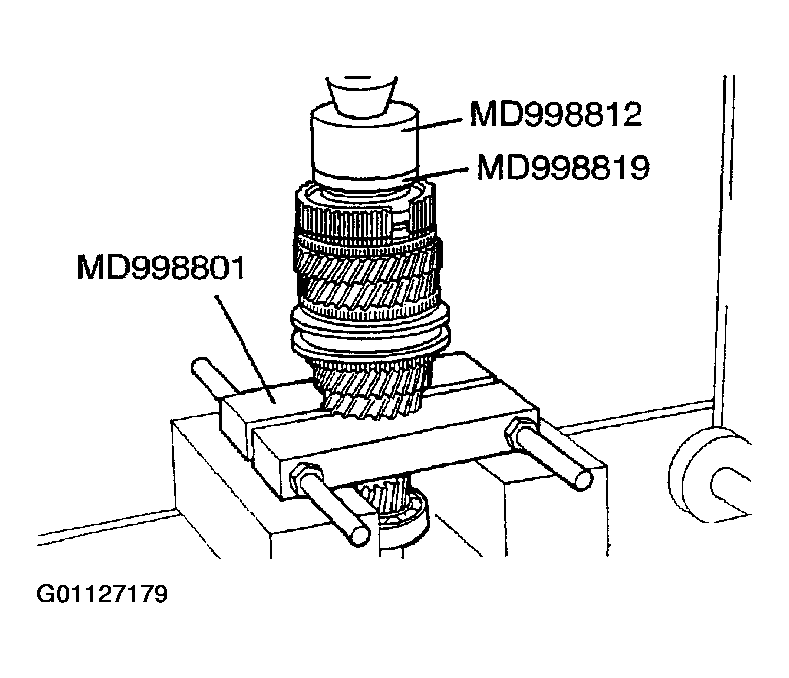

Fig 1: Installing 5th Reverse Synchronizer Hub

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When installing the 5th-reverse synchronizer hub, check that the synchronizer ring is not caught.

Fig 2: Checking Synchronizer Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
