Removal And Installation

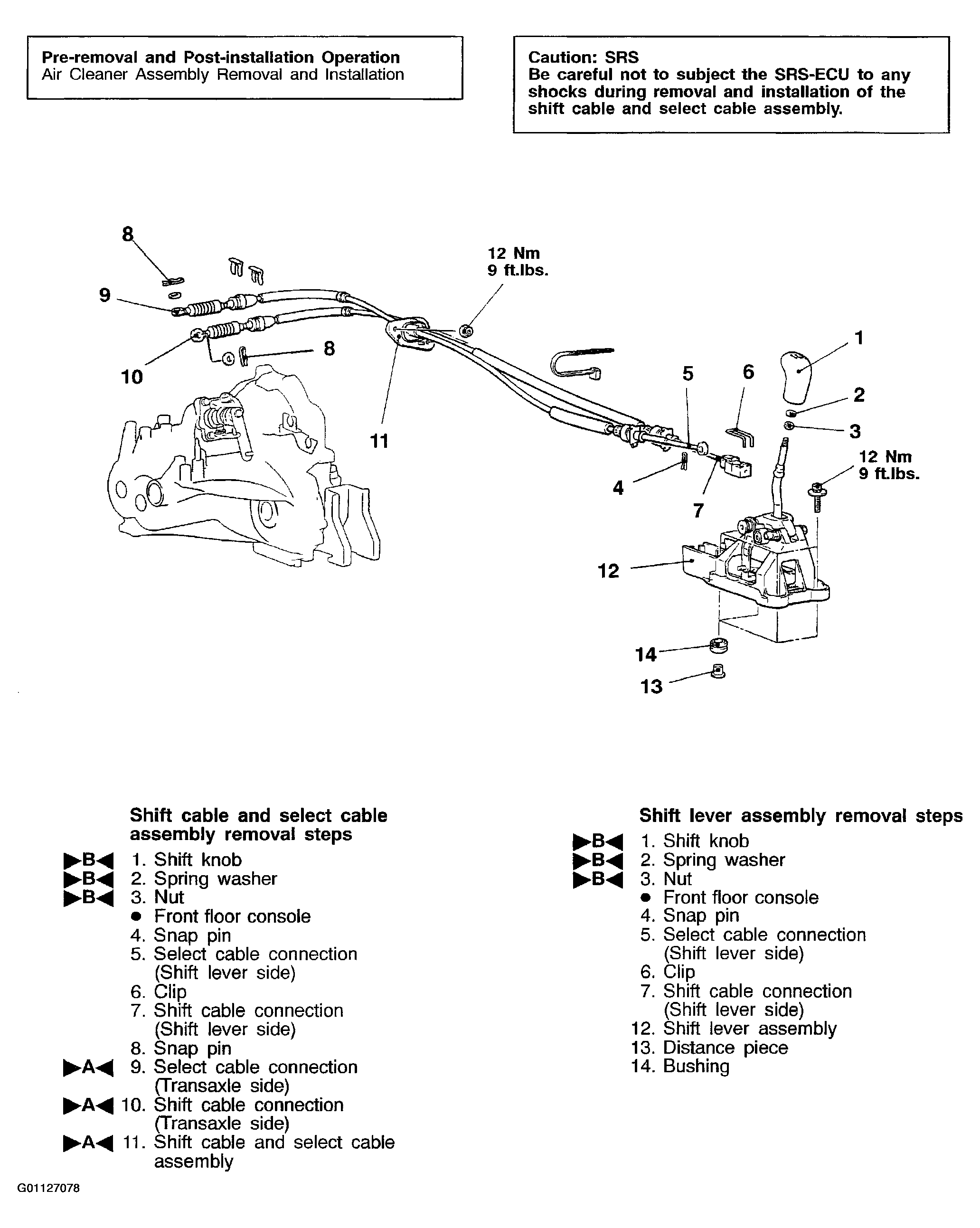

Fig 1: Removing & Installing Transaxle Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
