Disassembly And Reassembly

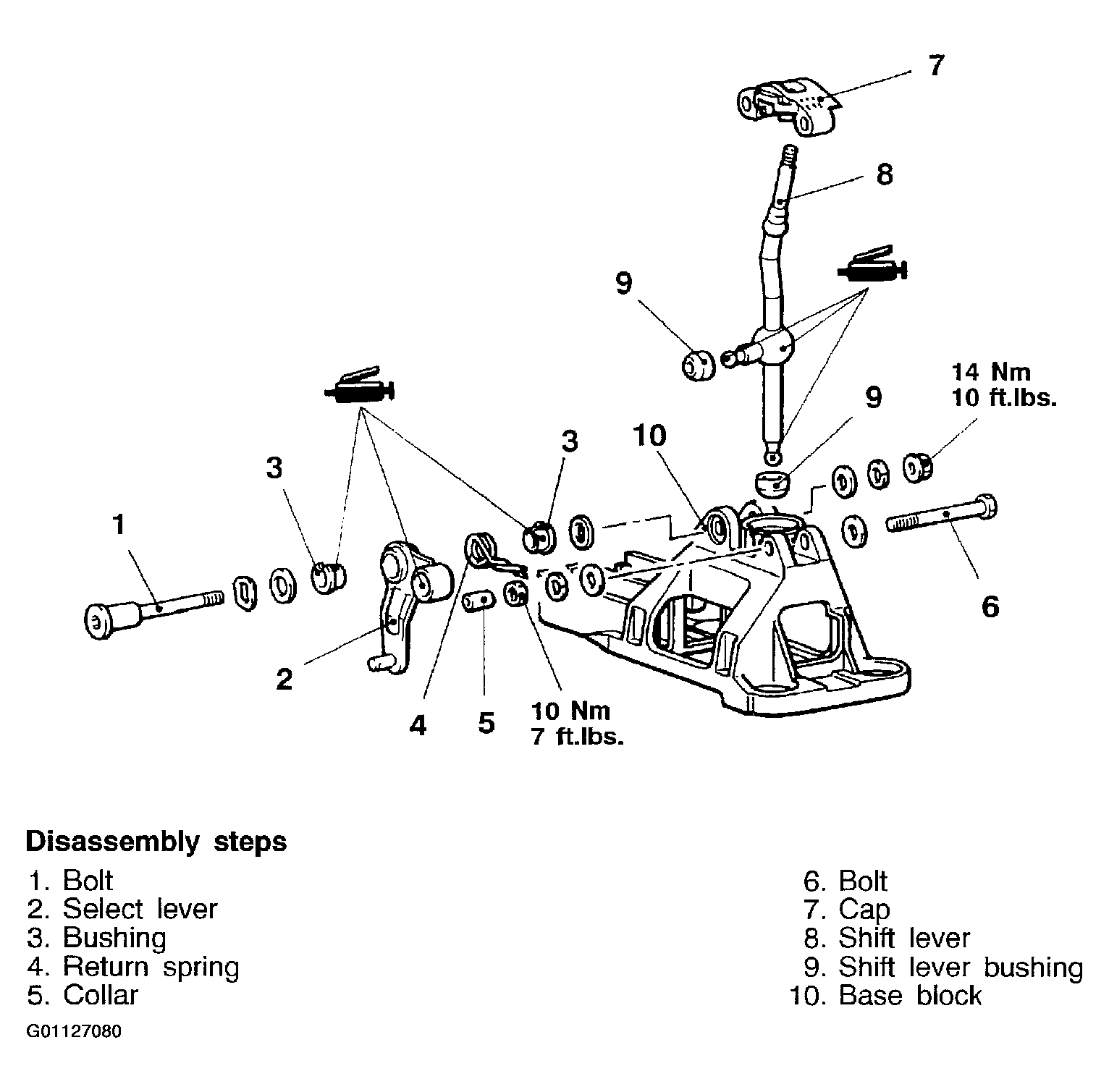

Fig 1: Exploded View Of Shift Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
