Sectional View < Transfer-Part Time 4WD >

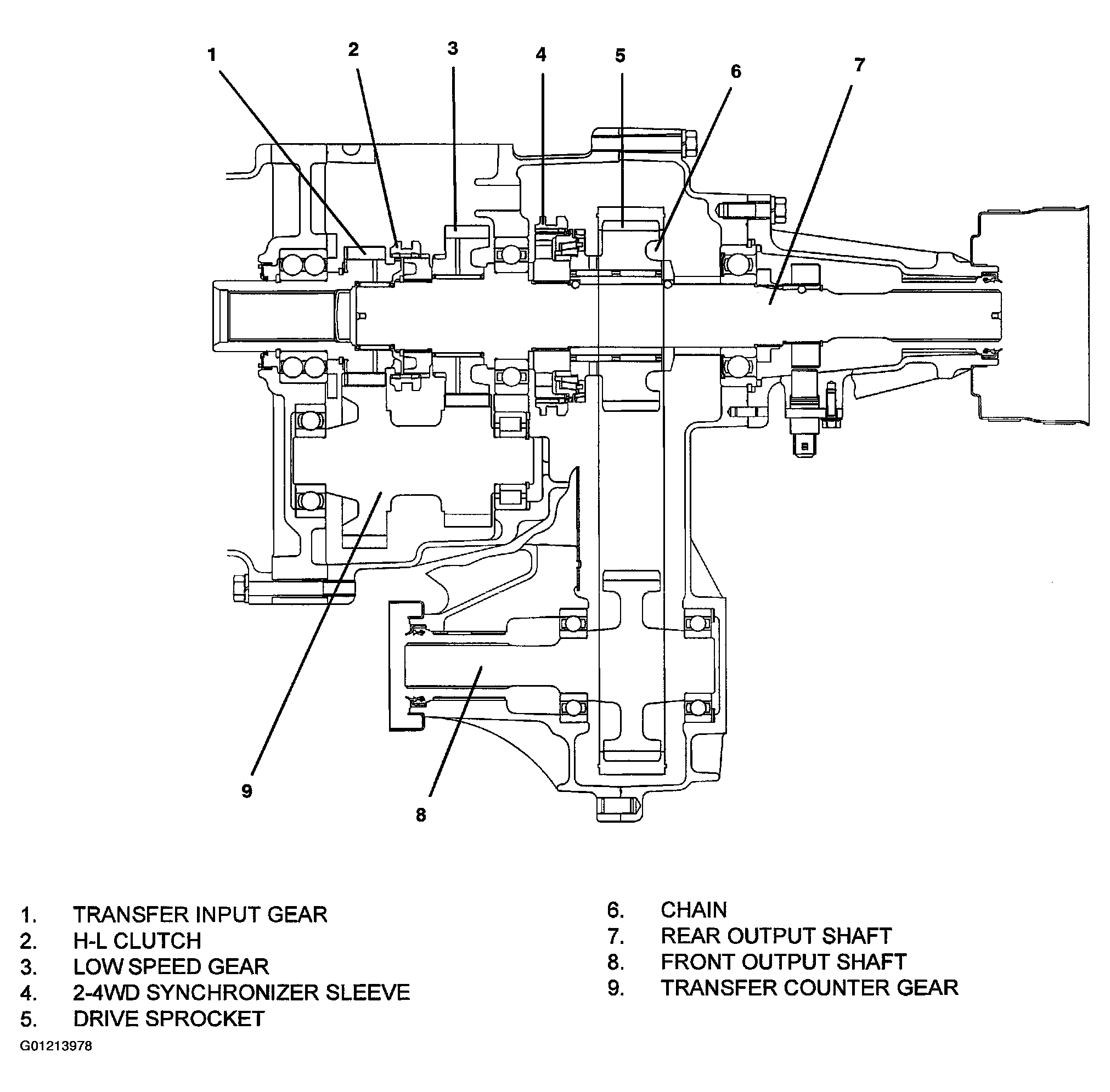

Fig 1: Transmission Sectional View (Transfer-Part Time 4WD)
G01213978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
