Remote Controlled Mirror Assembly Check

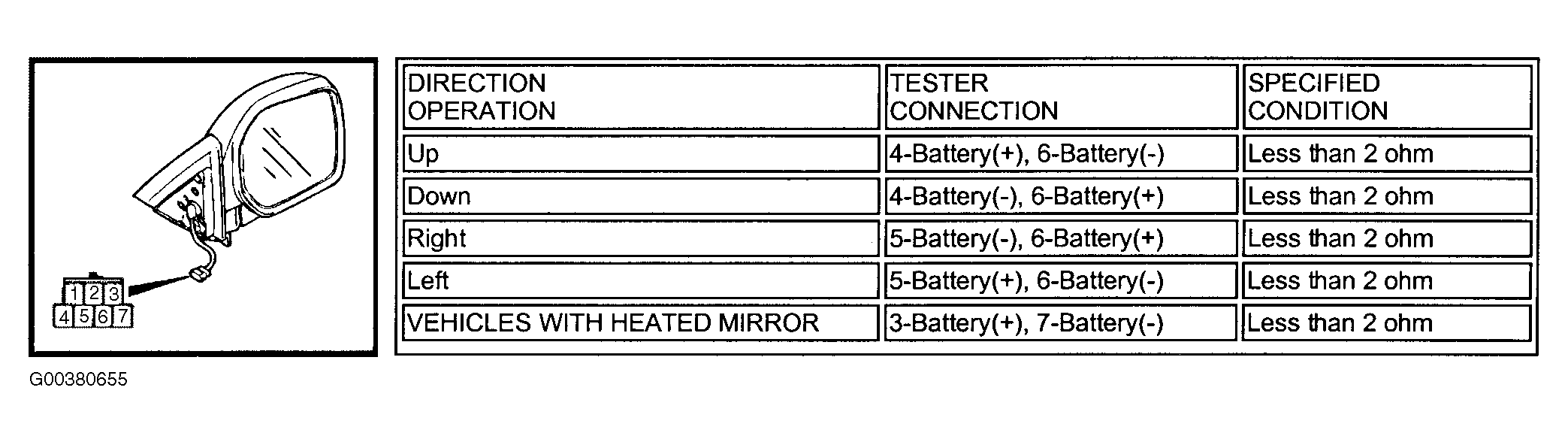

Fig 1: Checking Remote Controlled Mirror Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
