Seat Assembly: Notes

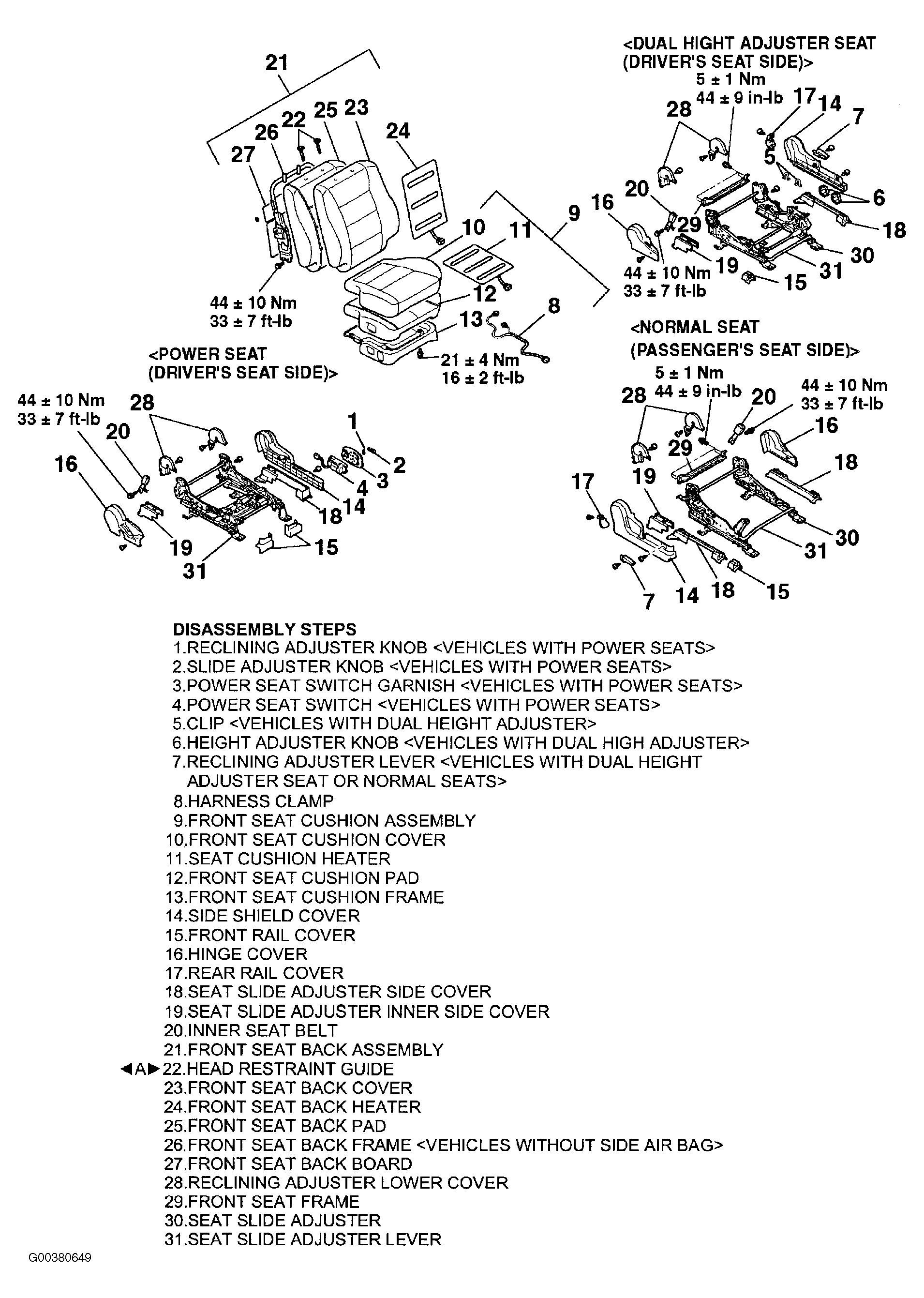

Fig 1: Disassembly & Reassembly Of Seat
G00380649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

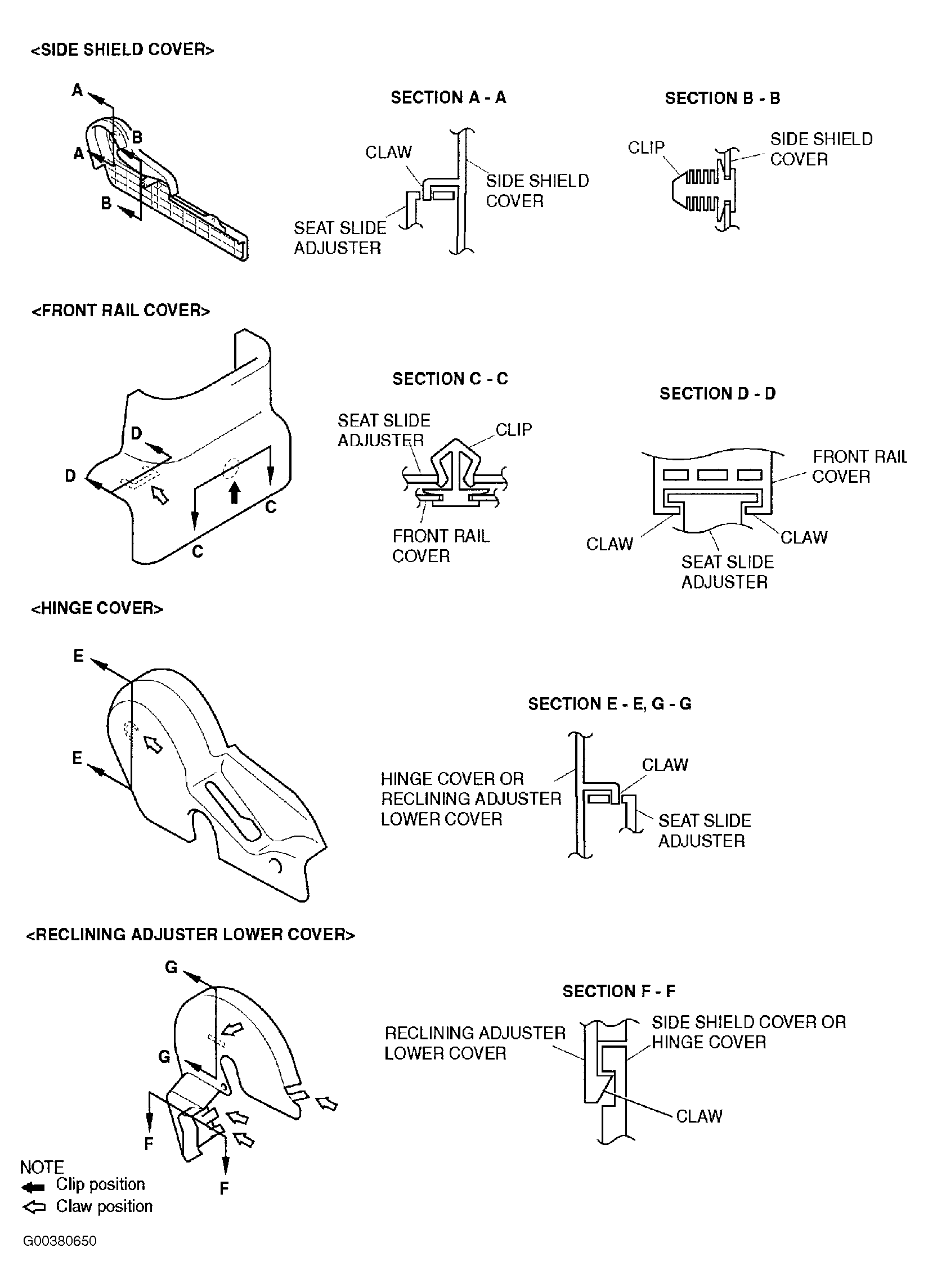

Fig 2: Locating Stud Points
G00380650Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
