Radiator Removal And Installation: Notes

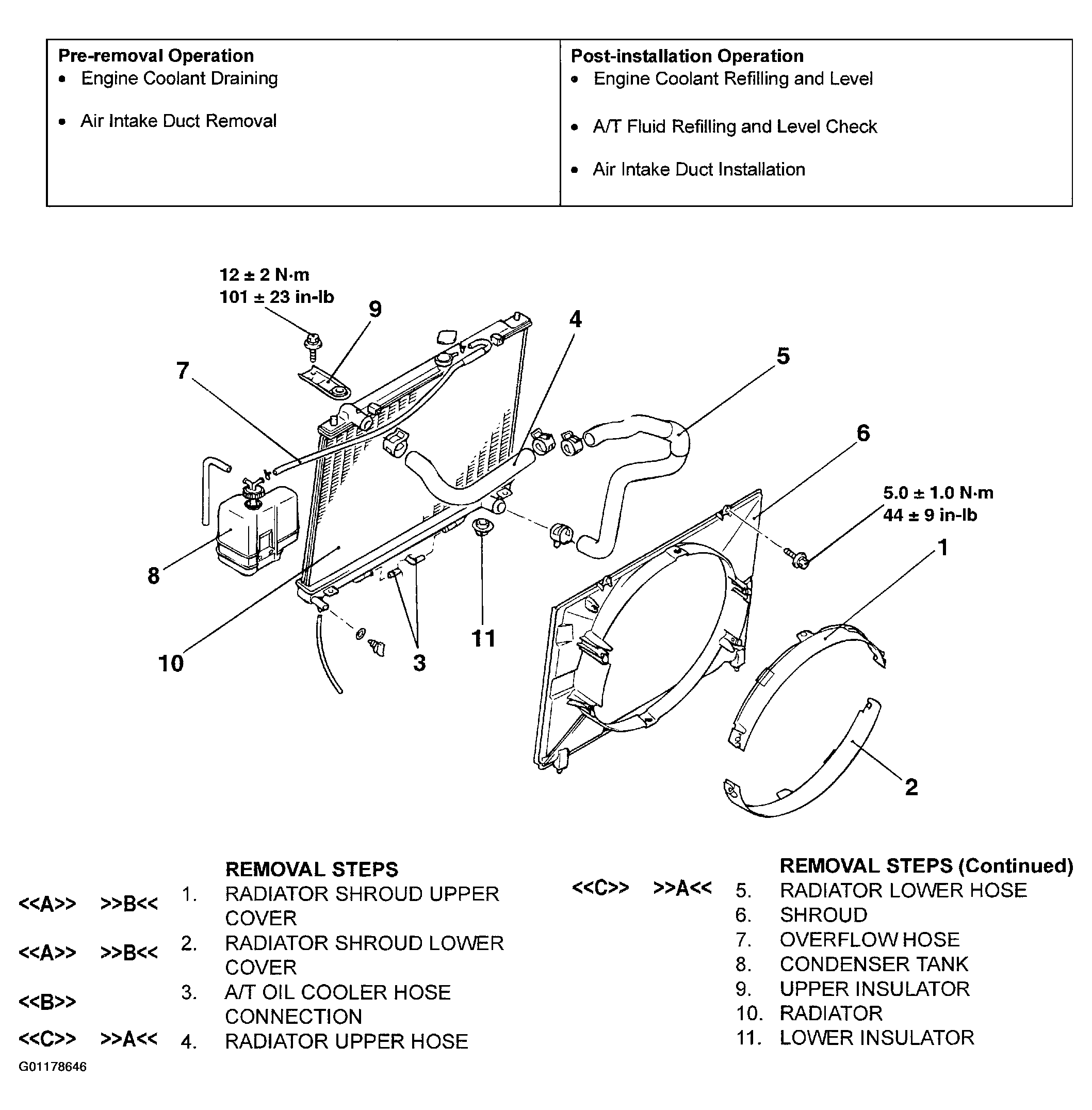

Fig 1: Identifying Radiator & Attachments
G01178646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
