Service Specification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Service Specification

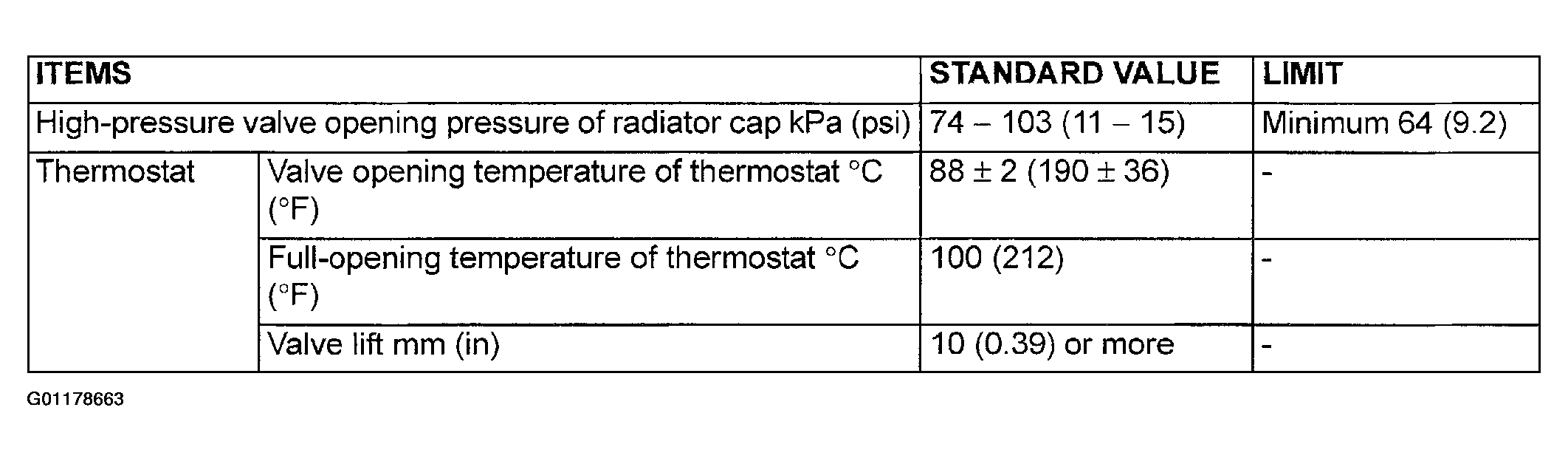

Fig 1: Cooling System Service Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
