Shift Switch Assembly Continuity Check

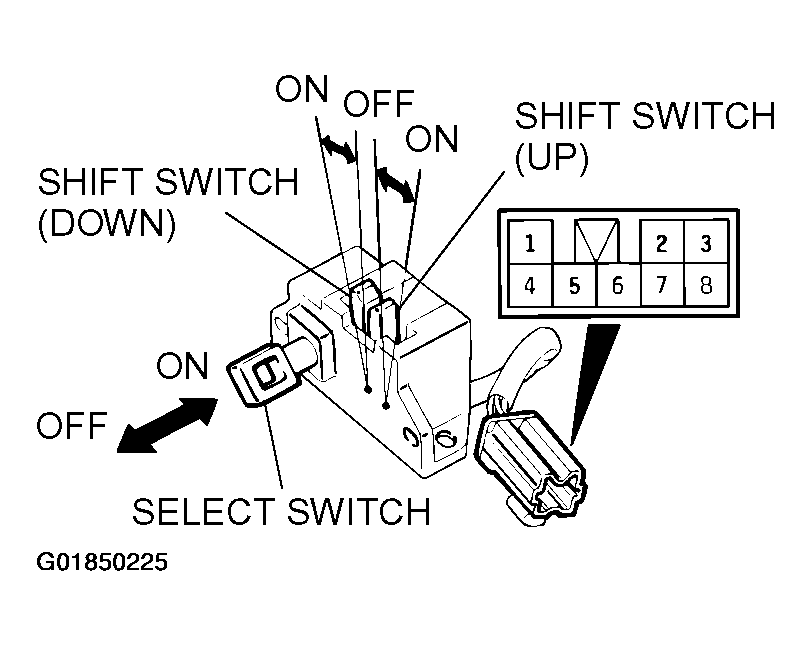

Fig 1: Checking Continuity Between Shift Switch Assembly Terminals
G01850225Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

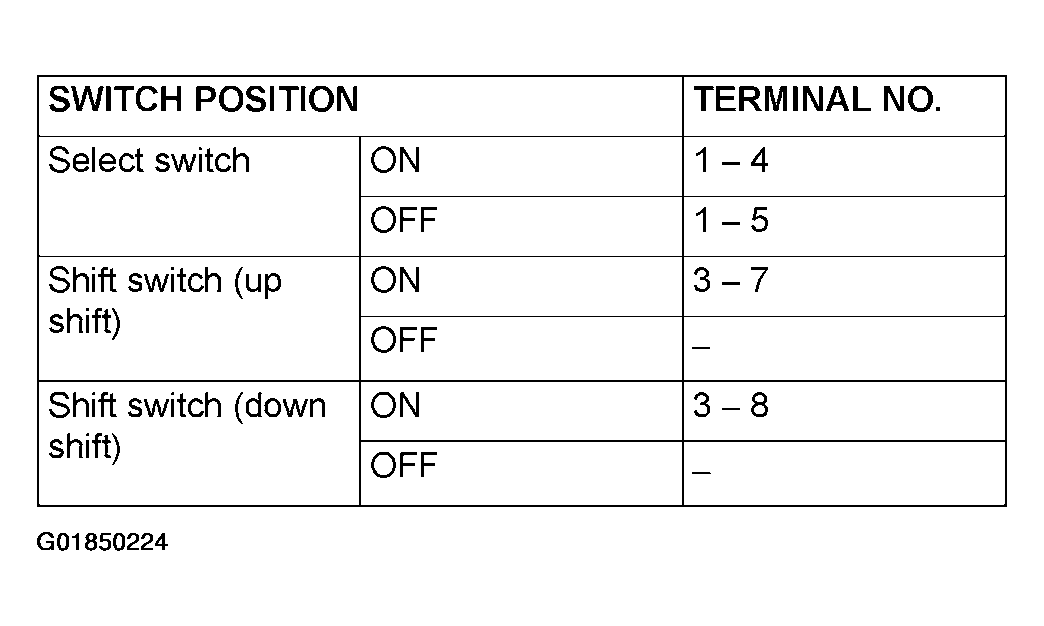

Fig 2: Shift Switch Assembly Continuity Check Table
G01850224Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
