Disassembly And Reassembly

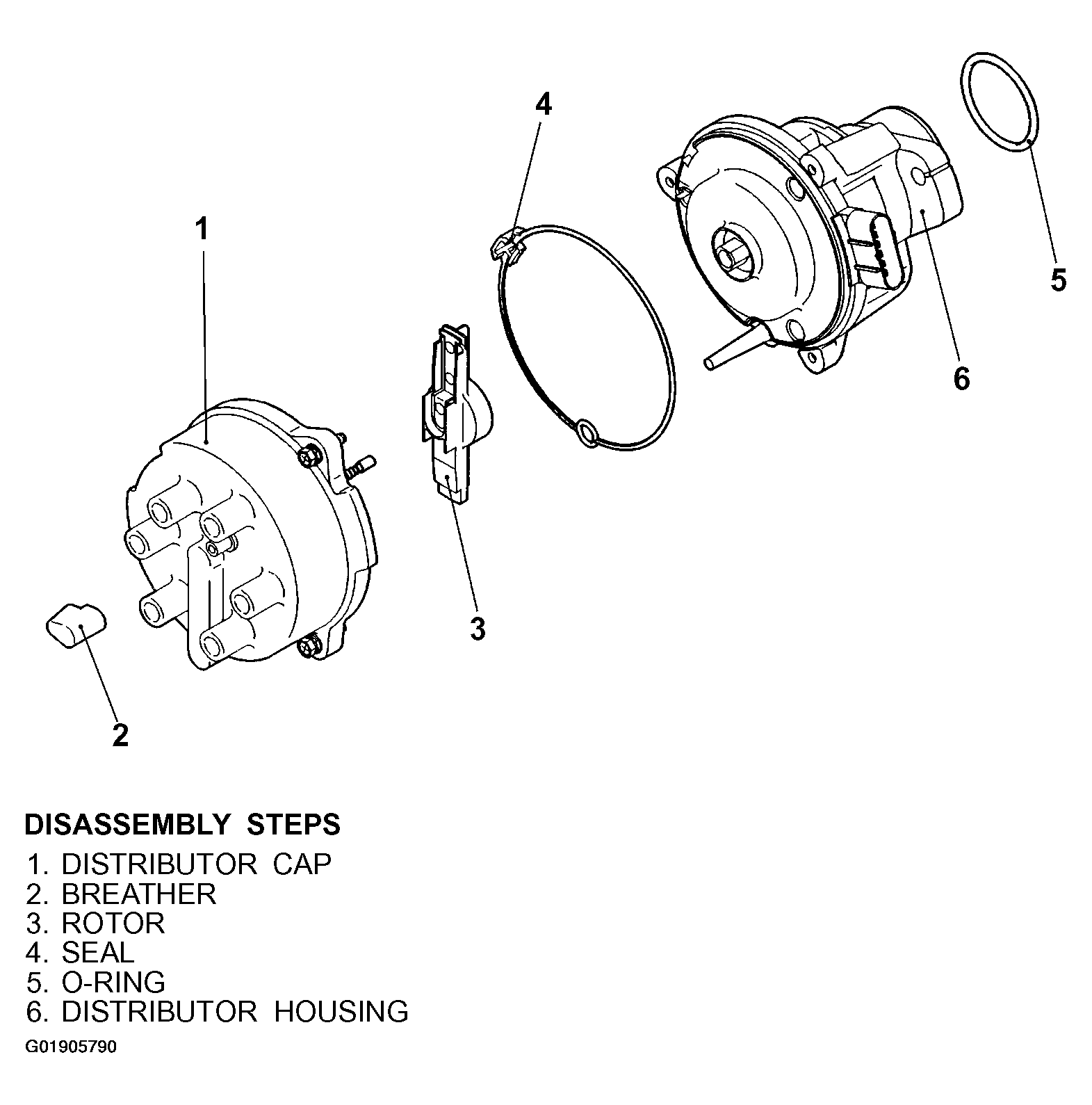

Fig 1: Distributor Disassembly And Reassembly Procedure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
