Battery
>>
On-Vehicle Service
>>
Battery Testing Procedure
>>
Test Step
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test Step

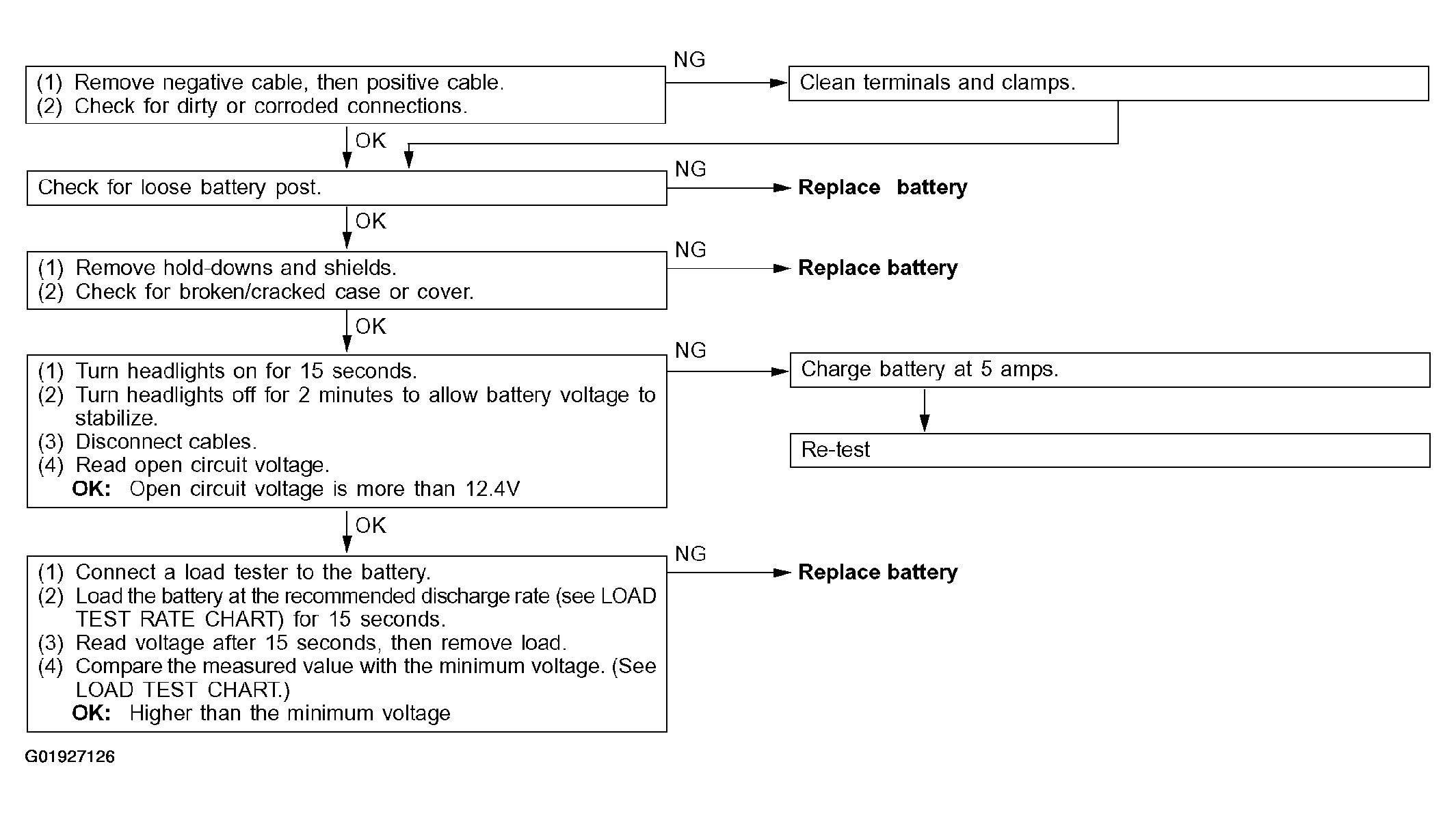

Fig 1: Battery Testing Procedure Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
