INSPECTION PROCEDURE 2: Only the Quarter Window < LH > does not Open and Close.: Notes

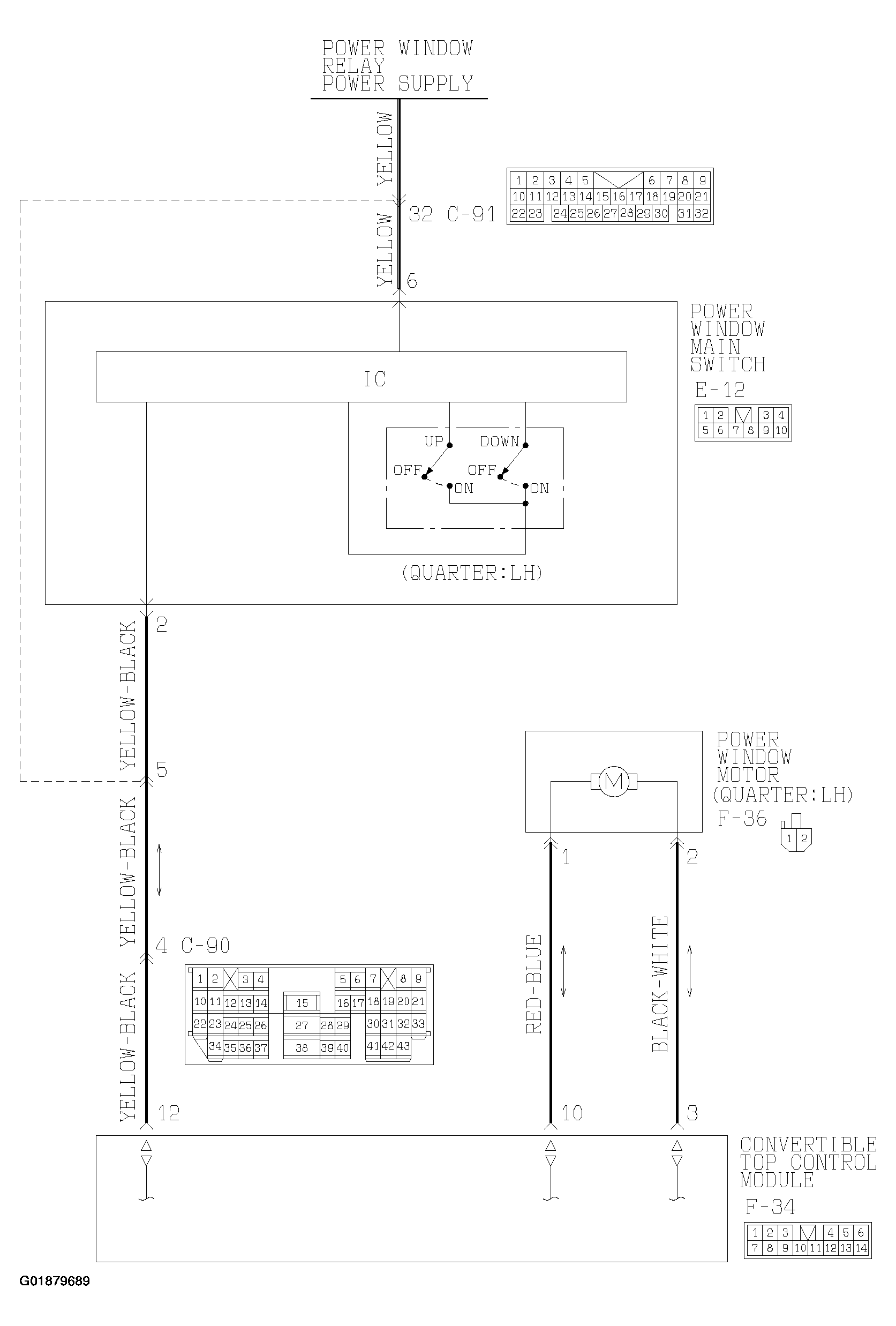

Fig 1: Quarter Window Regulator Motor < LH > Drive Circuit Diagram (1 Of 2)
G01879689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

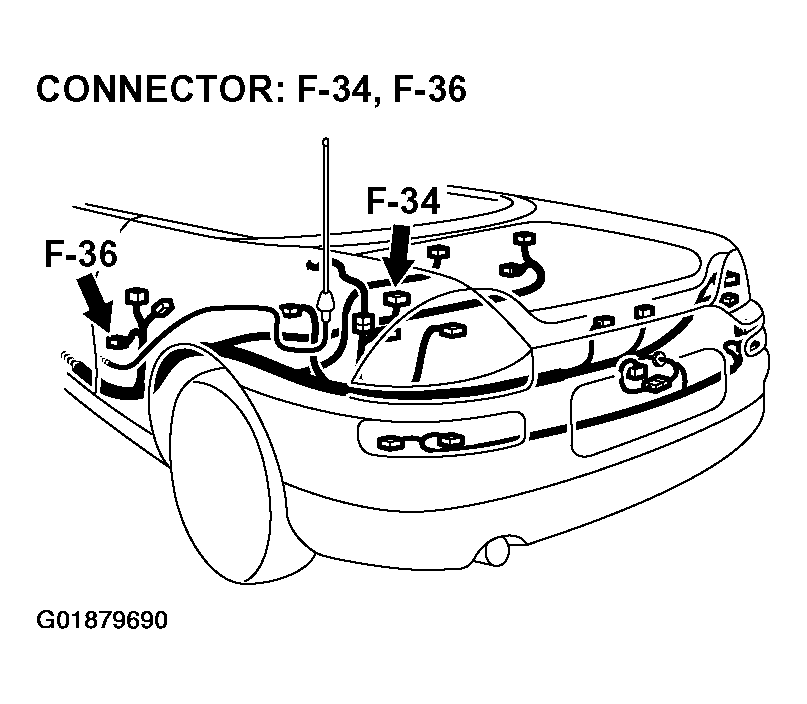

Fig 2: Quarter Window Regulator Motor < LH > Drive Circuit Diagram (2 Of 2)
G01879690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
