Using Scan Tool MB991502

Required Special Tool:

MB991502: Scan Tool (MUT-II)

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOOK" (OFF) position before connecting or disconnecting the scan tool MB991502.

Connect scan tool MB991502 to the data link connector.
Turn the ignition switch to the "ON" position.
Use scan tool MB991502 to erase ABS diagnostic trouble codes.
Turn the ignition switch to the "LOOK" (OFF) position.
Disconnect scan tool MB991502.

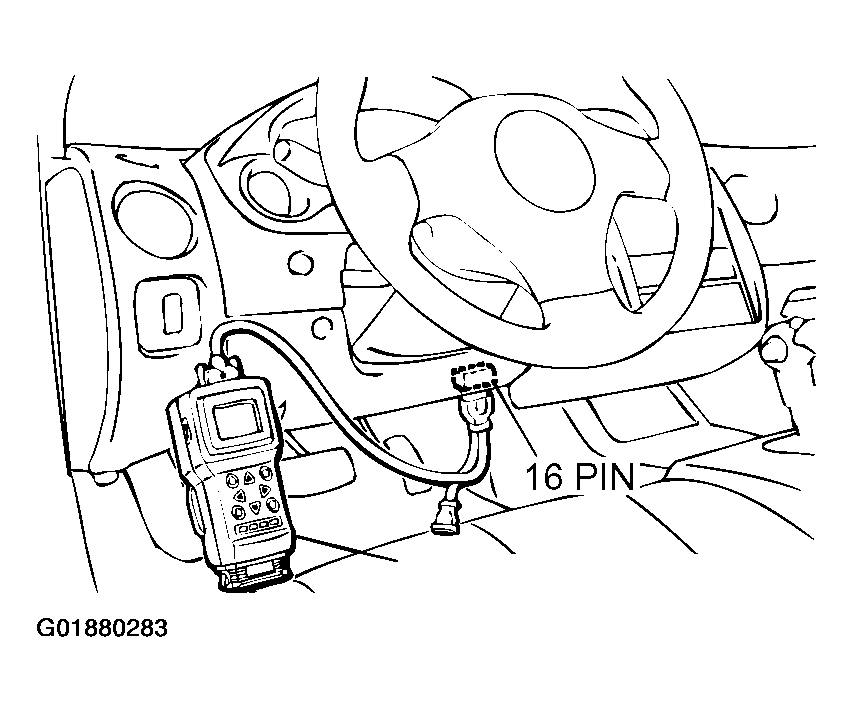

Fig 1: Connecting Scan Tool To Data Link Connector For Erasing ABS DTC
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
