Using The Abs Warning Light And Special Tool MB991529

NOTE: The TCL system is controlled by the ABS-ECU. TCL diagnostic trouble codes are also indicated by flashing of the ABS warning light.

Required Special Tool:

MB991529: Diagnostic Trouble Code Check Harness

Use special tool MB991529 to ground number 1 terminal of the data link connector.

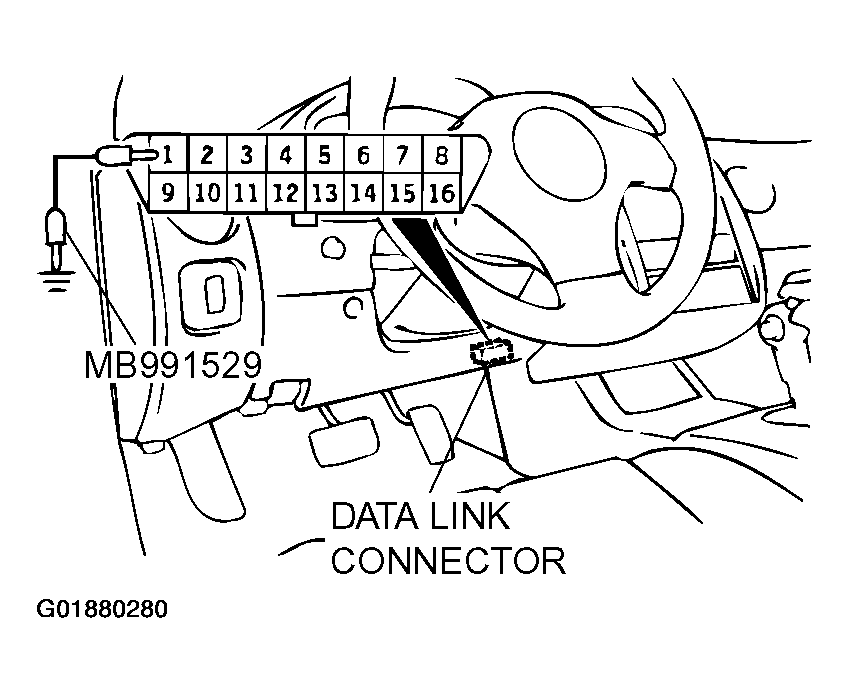

Fig 1: Checking Harness Using Special Tool To Ground Terminal Of Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not depress the brake pedal after the ignition switch is turned "ON." If the brake pedal is depressed while the ABS is inoperative and the ignition switch is "ON," the ABS warning light will remain on. Because of this, diagnostic trouble codes will not be read out.
Turn the ignition switch to the "ON" position.
Read out a diagnostic trouble code by observing how the warning light flashes.

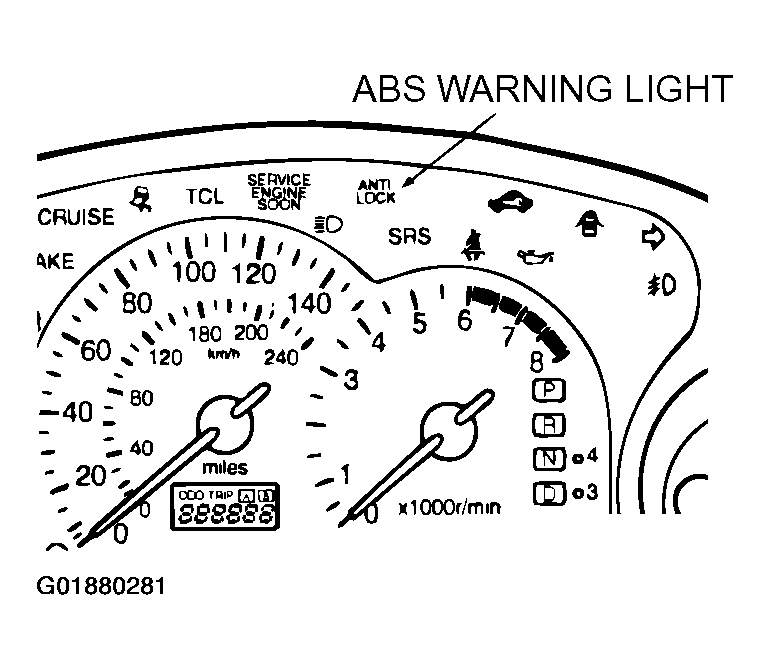

Fig 2: Identifying ABS Warning Light
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

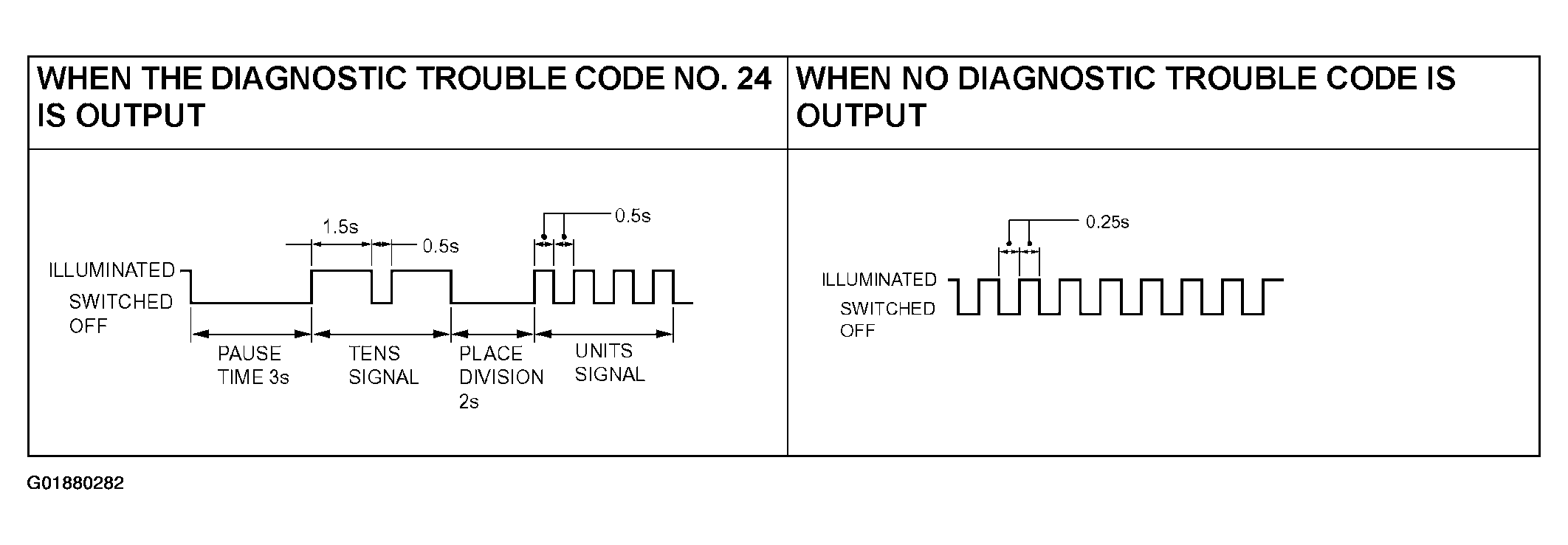

Fig 3: Blinking Pattern For Retrieving TCS DTC
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disconnect special tool MB991529.
