DTC 38: Stoplight Switch System: Notes

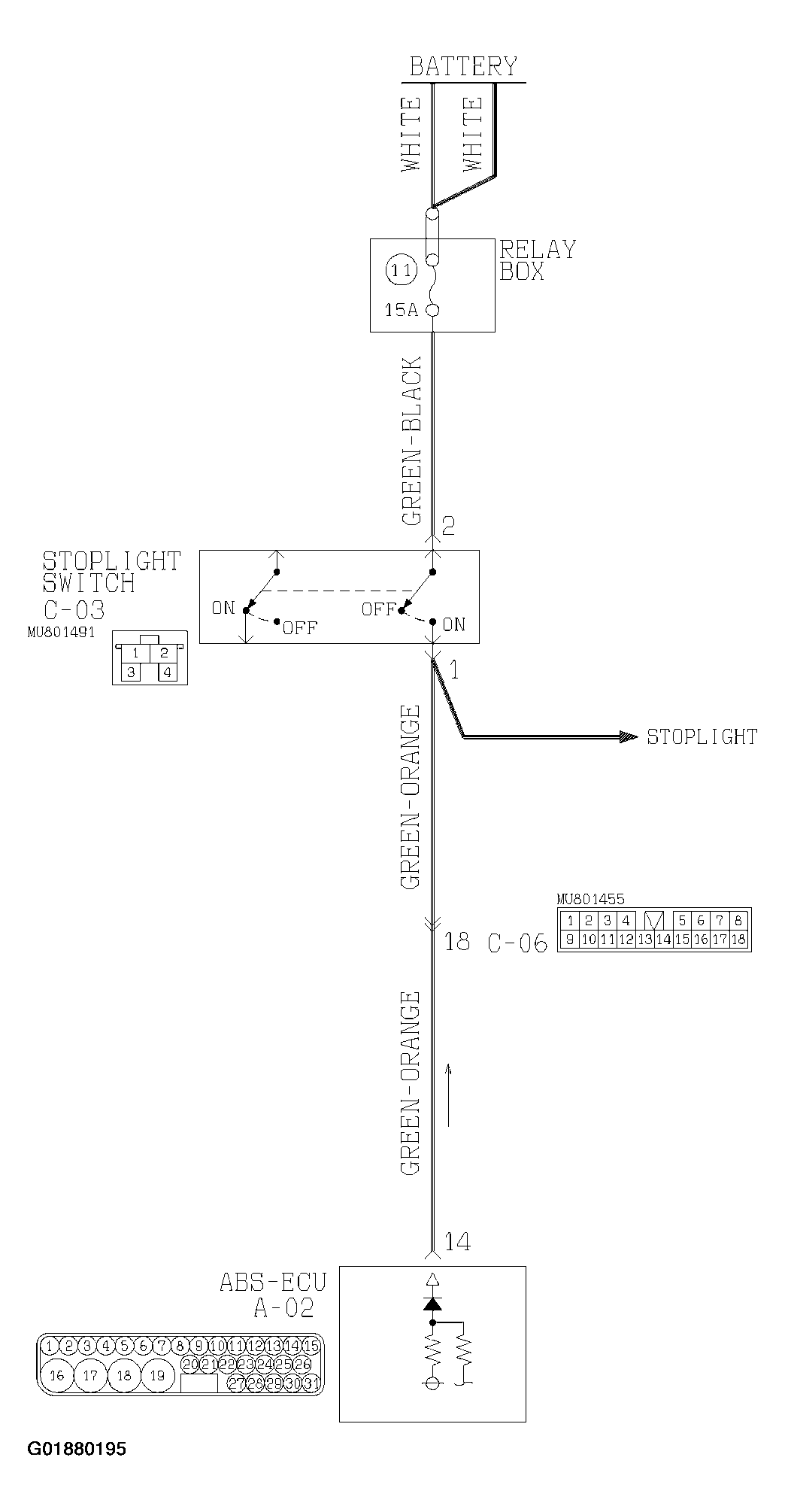

Fig 1: Circuit Diagram - Stoplight Switch (1 Of 2)
G01880195Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

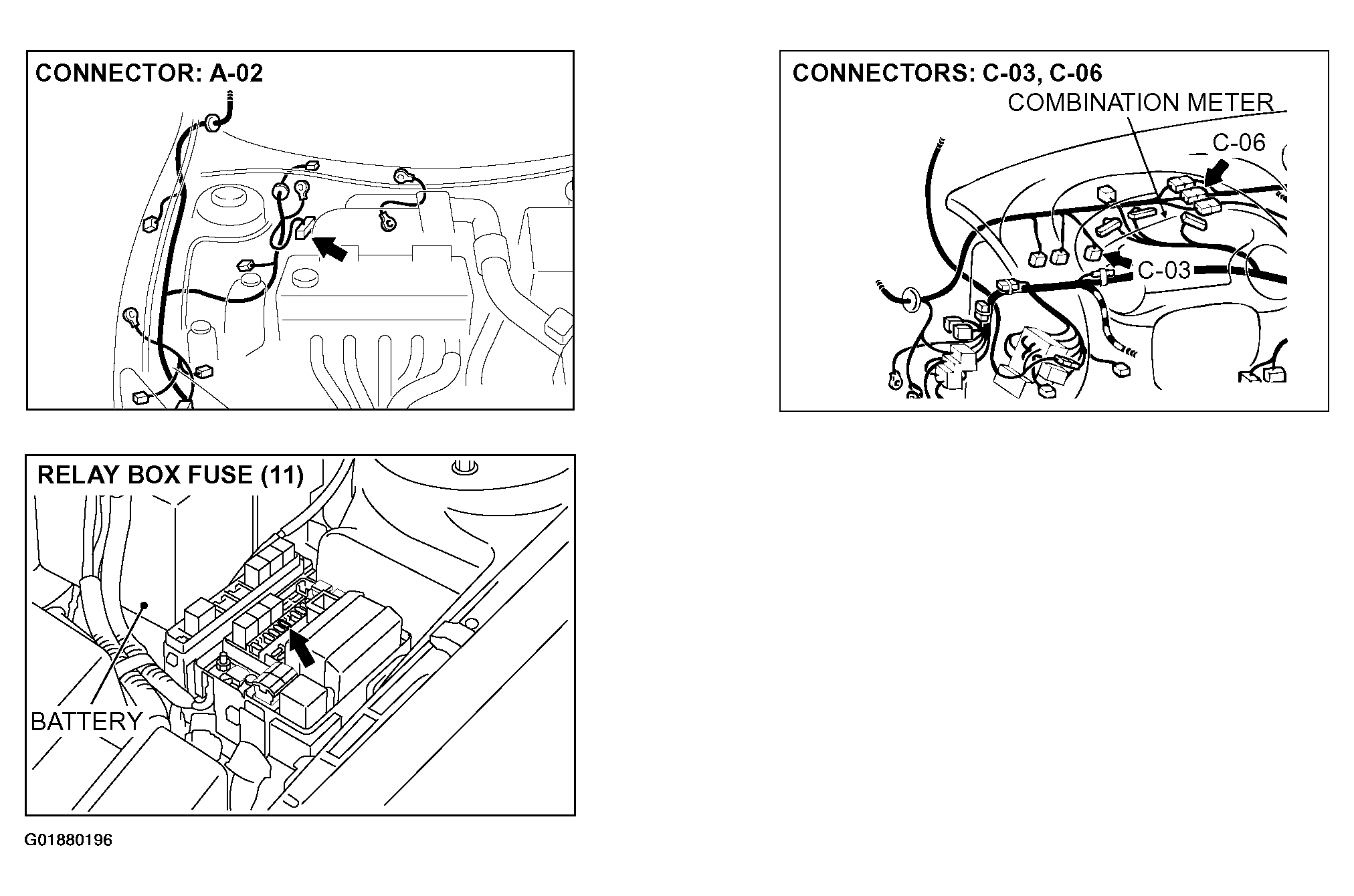

Fig 2: Circuit Diagram - Stoplight Switch (2 Of 2)
G01880196Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
