Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Engine Compartment Relay Box | Left side of engine compartment. |
| Fusible Links No. 1, 2, 3, 4 & 5 | In engine compartment relay box. |
| Fusible Link No. 26 | Attached to positive battery cable. |
| Fusible Link No. 27 | Under front of engine compartment relay box. |

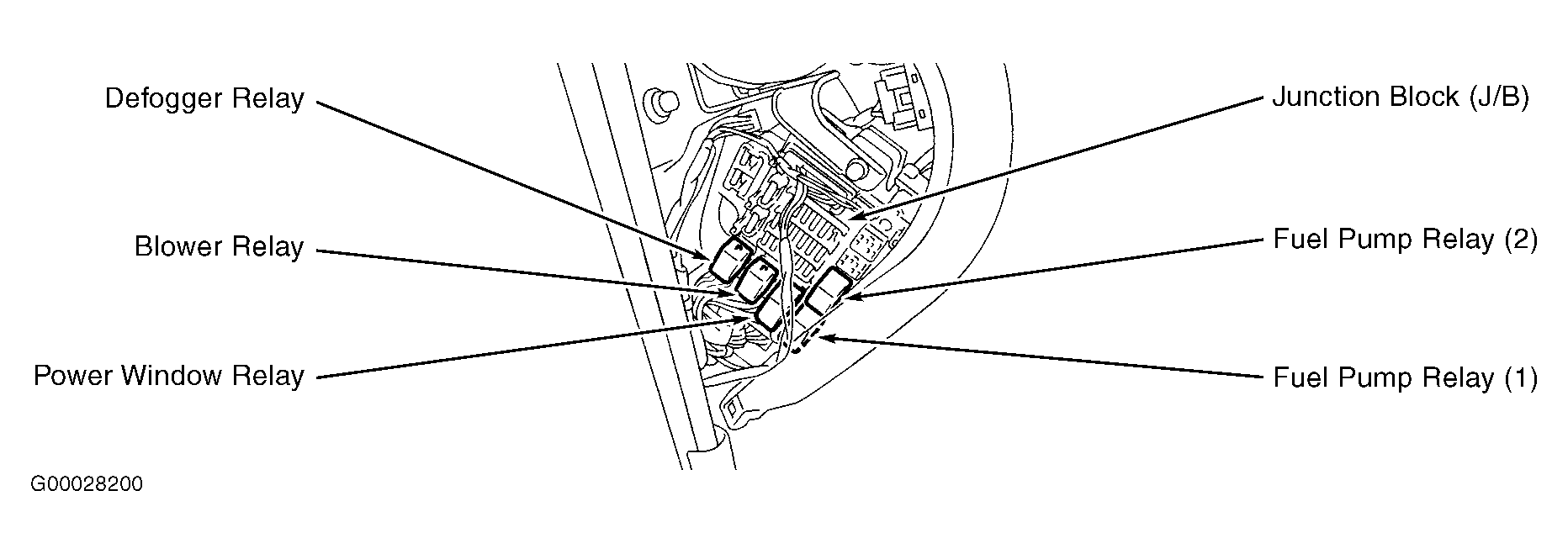

| Junction Block (J/B) | Under left end of dash. See Figure . |
