>>O<< Synchronizer Ring Installation
CAUTION:
There is a 5th speed synchronizer ring and a reverse synchronizer ring. Be careful not to confuse the two when installing, as a mistake can effect the shift feeling.

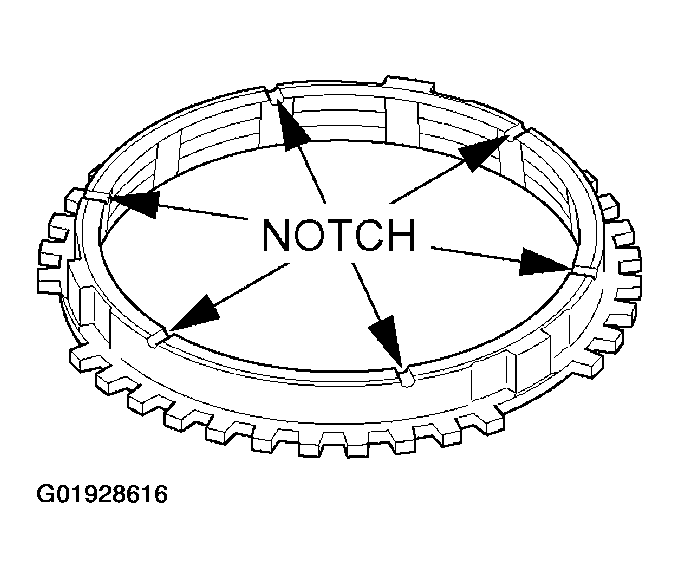

- Check for the presence of identification notches on the synchronizer ring.
No notches: 5th speed synchronizer ring
Six notches: Reverse synchronizer ring < F5M42 >
Three notches: Reverse synchronizer ring < F5M51 >
- Install the synchronizer ring so that it does not incline toward the cone of the gear.
