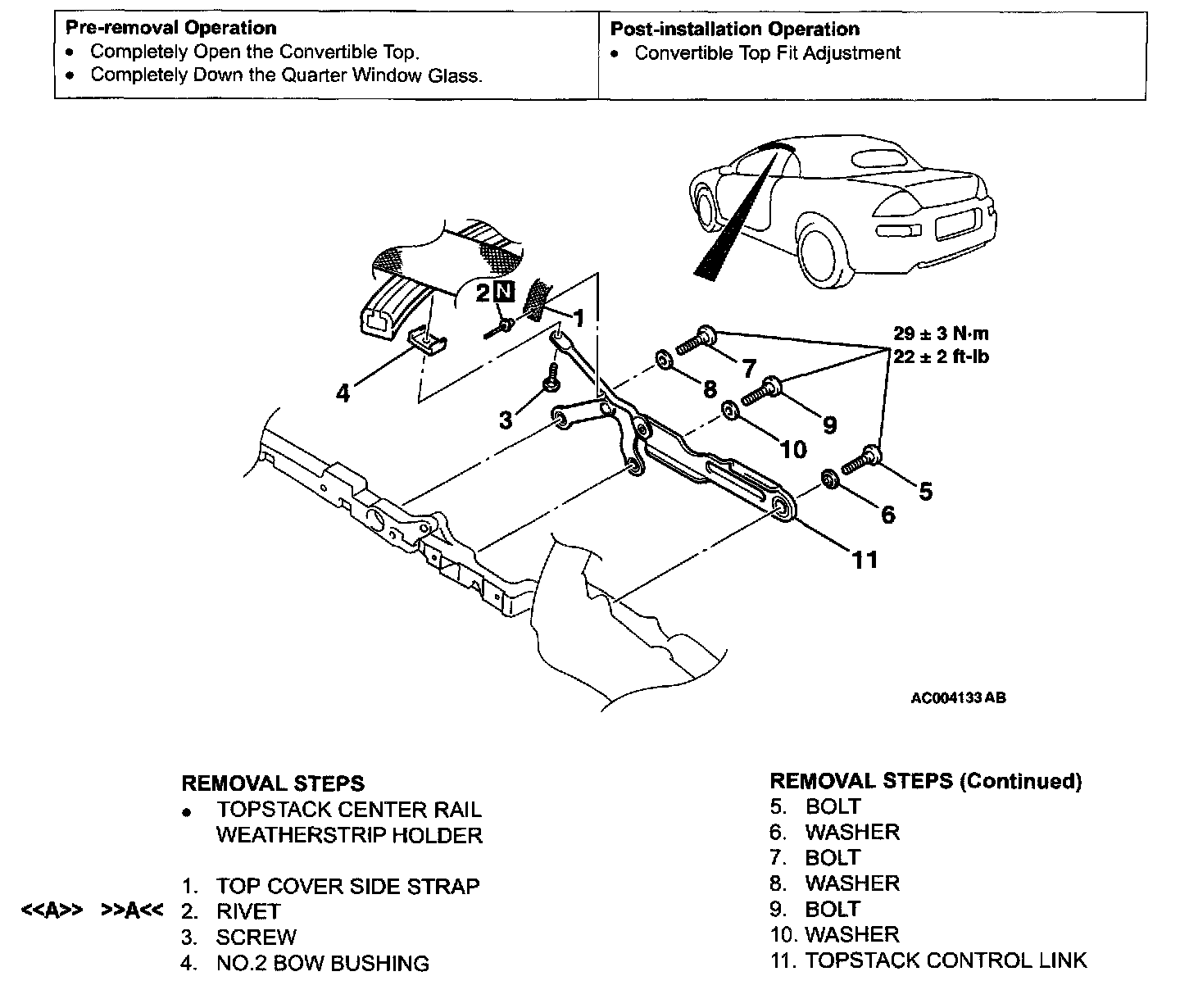

Topstack Control Link Assembly

Topstack Control Link Assembly:

REMOVAL SERVICE POINT

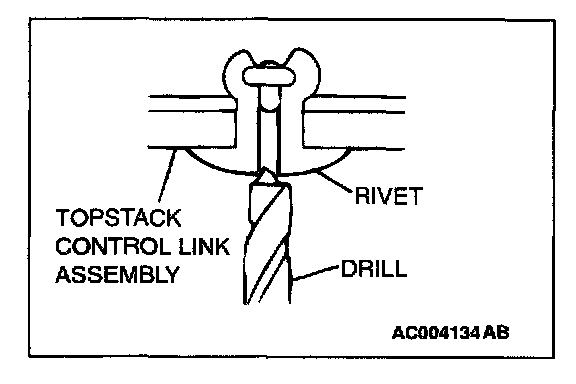

[[A]] RIVET REMOVAL
Use a drill [psi 4.0 - 4.5 mm (psi 0.16 - 0.18 inch)] to break the rivet by drilling a hole, and remove the rivet.

INSTALLATION SERVICE POINT

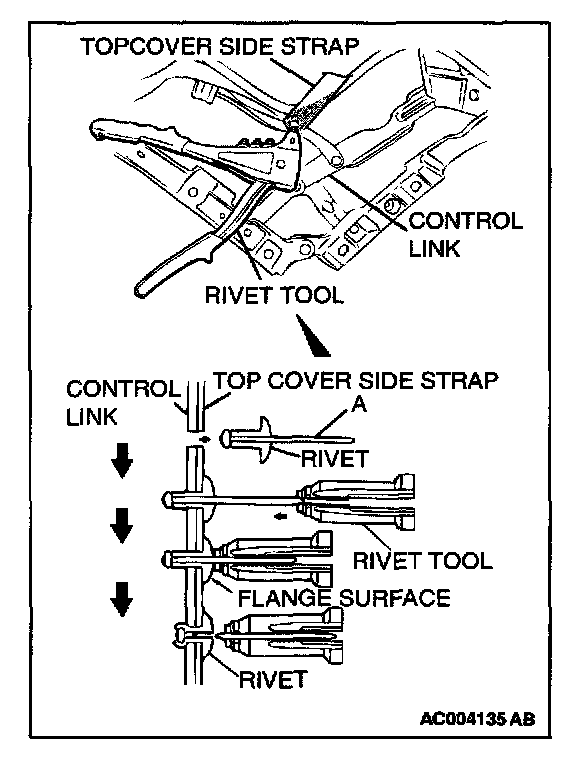

]]A[[ RIVET INSTALLATION




1. Insert the rivet [psi 4.8 mm (psi 0.19 inch)] into the top cover side strap and control link.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in the position.
