Disc Brake System
>>
Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front

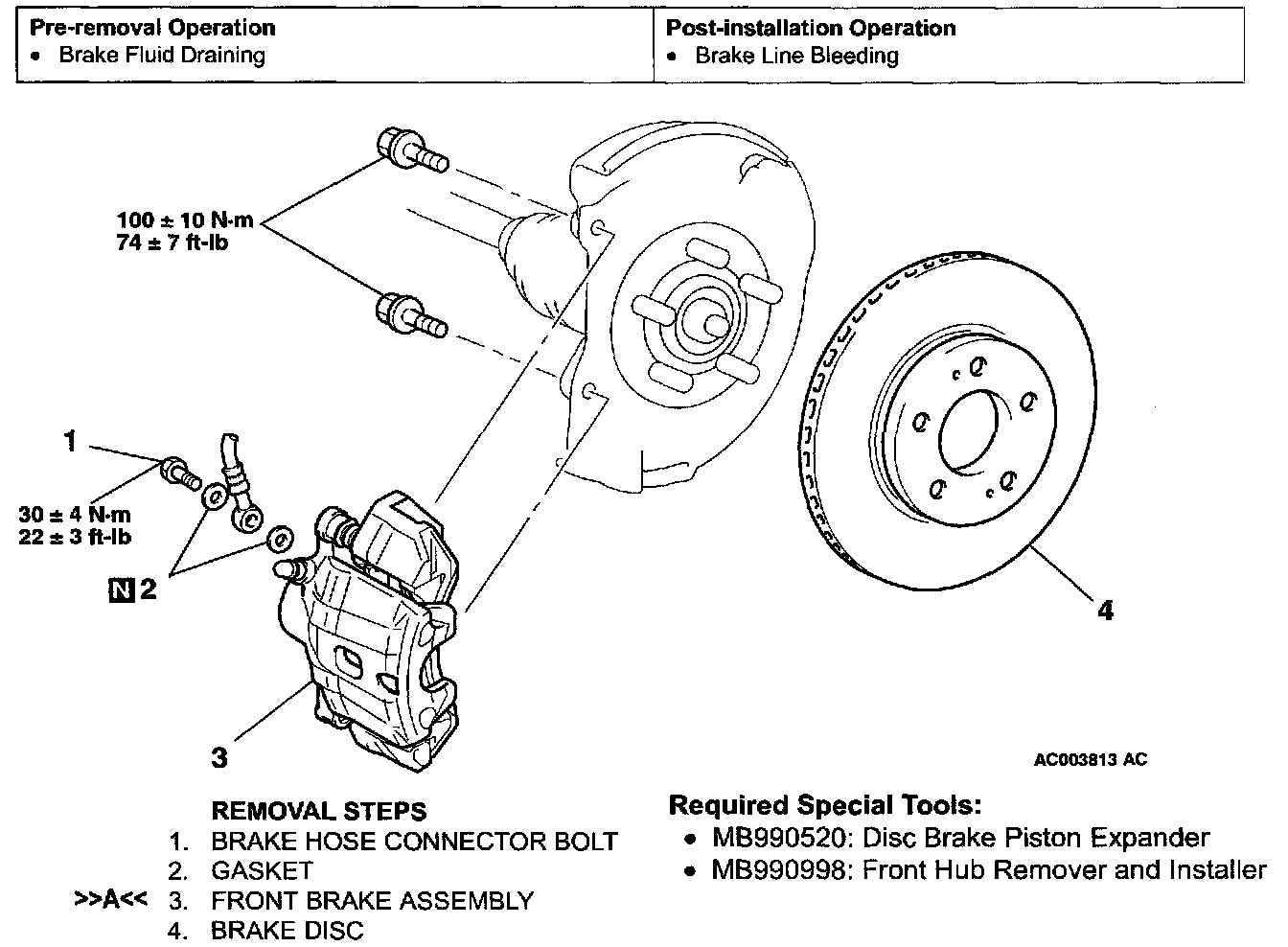

FRONT DISC BRAKE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

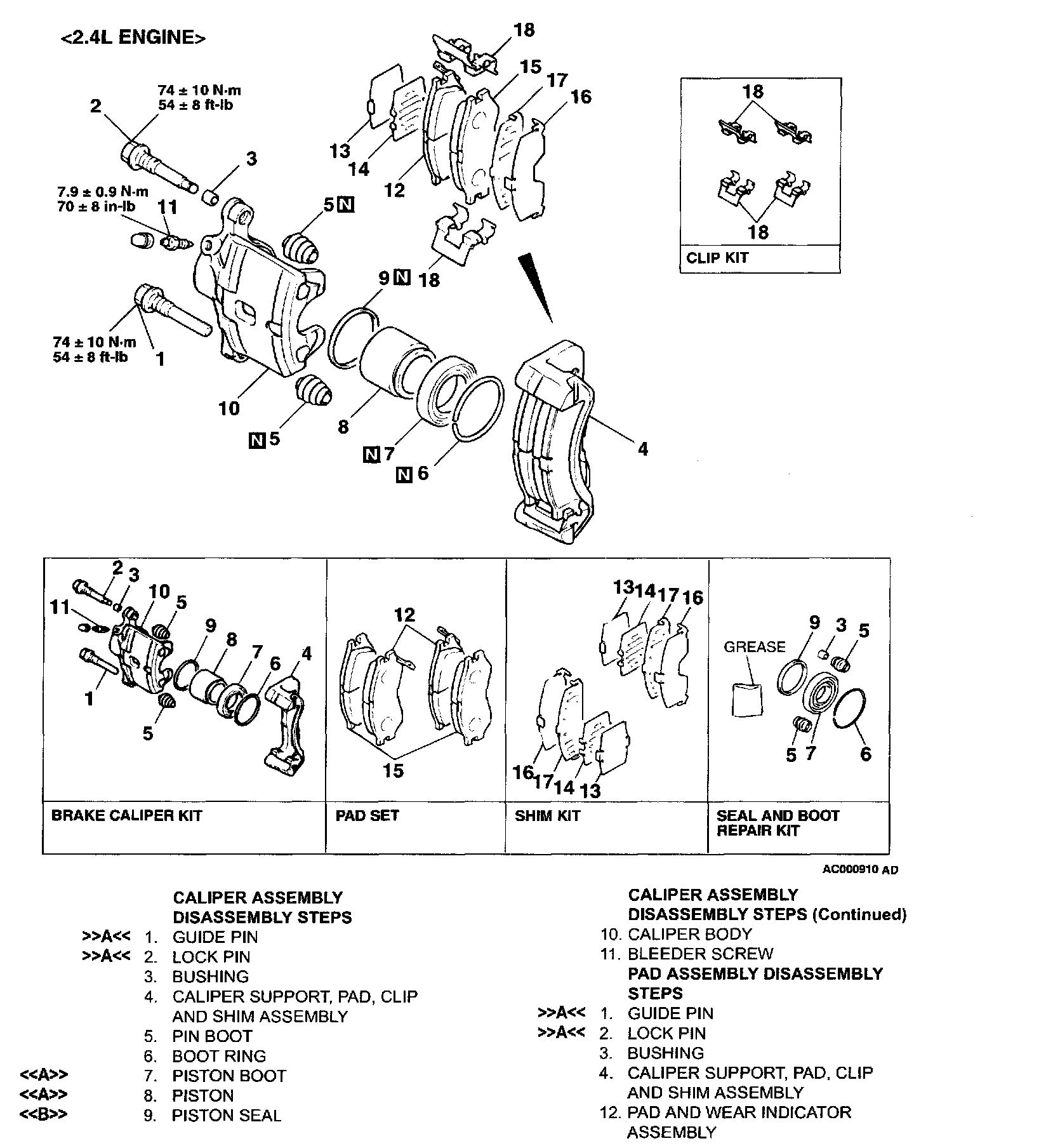

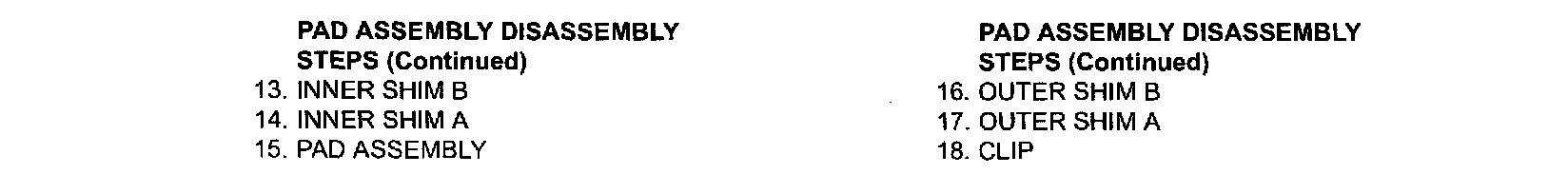

FRONT DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
