Compressor Speed Sensor: Testing and Inspection

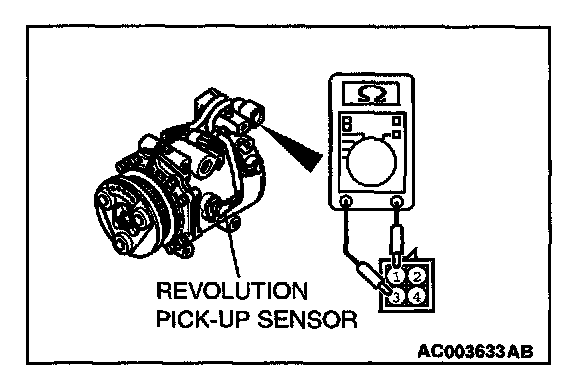

REVOLUTION PICK-UP SENSOR CHECK




Measure the resistance between terminals 1 and 3. Check that the measured value is at the standard value.

Standard value: 405 ± 35 Ohms when the ambient temperature is 20 °C (68 °F)
