DTC 22: Input Shaft Speed Sensor System: Notes

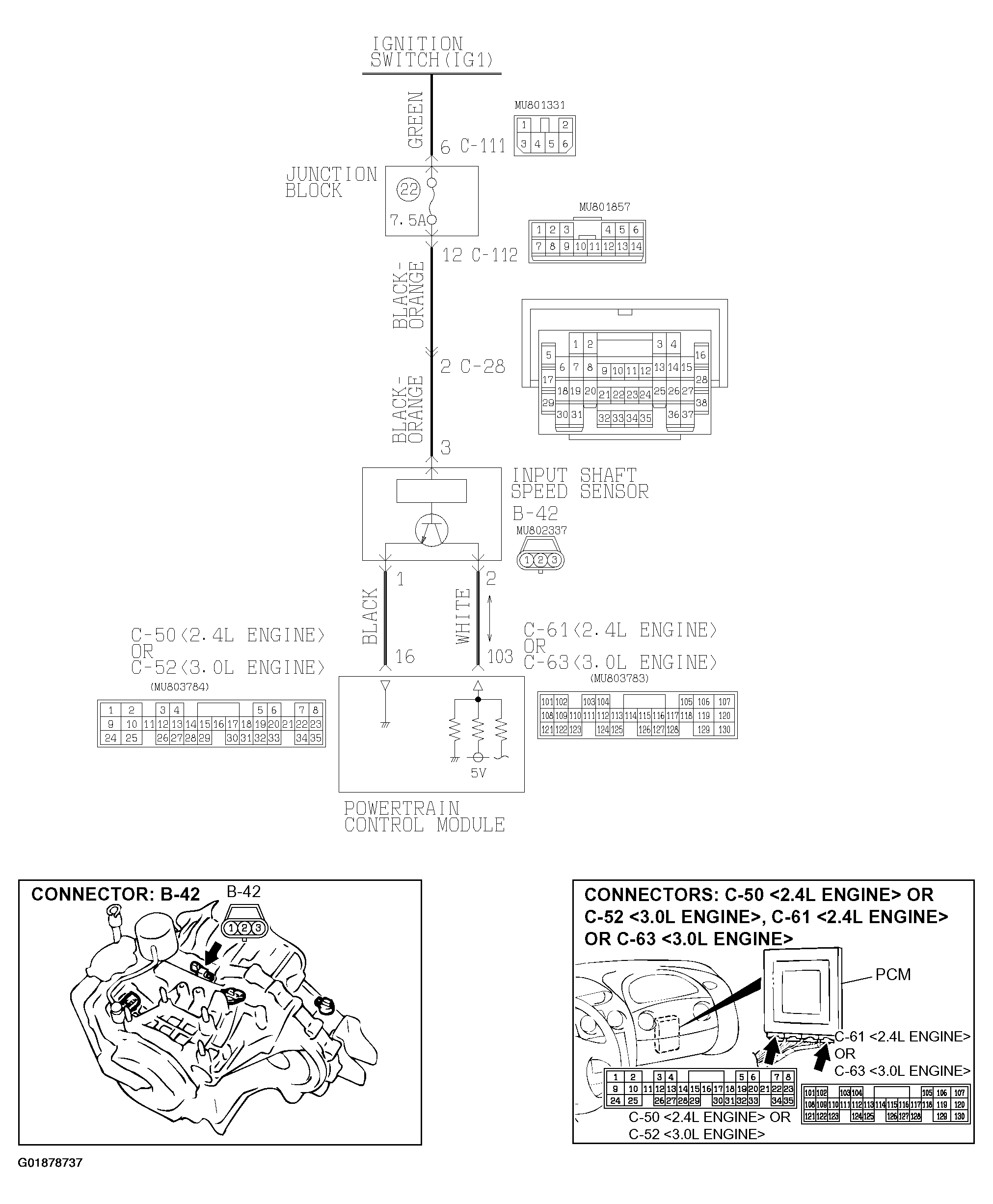

Fig 1: Input Shaft Speed Sensor System Circuit (1 Of 2)
G01878737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

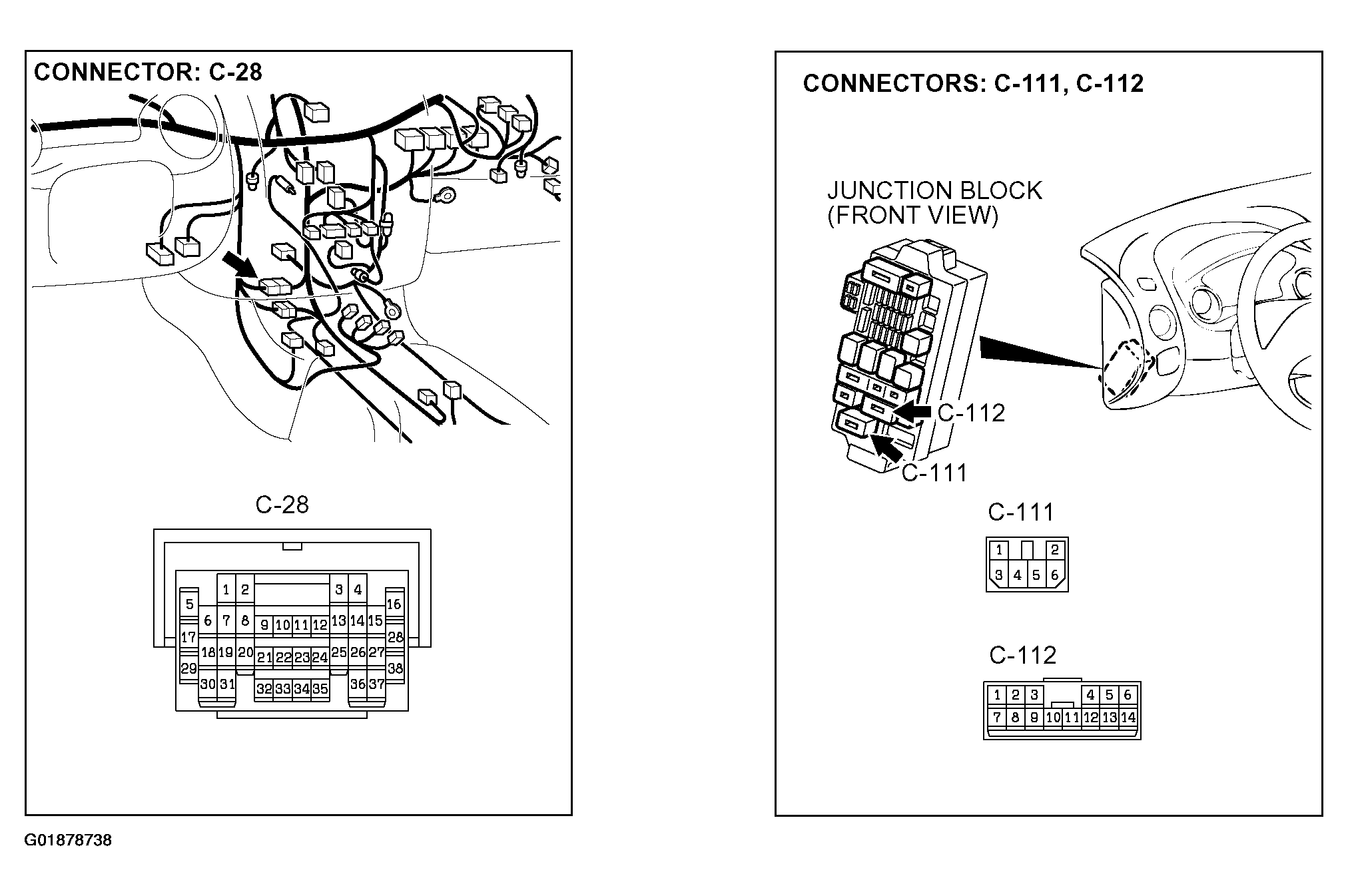

Fig 2: Input Shaft Speed Sensor System Circuit (2 Of 2)
G01878738Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
