INSPECTION PROCEDURE 18: Shift Switch Assembly System< Vehicles with Sport Mode >: Notes

Fig 1: Shift Switch Assembly System Circuit Diagram (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

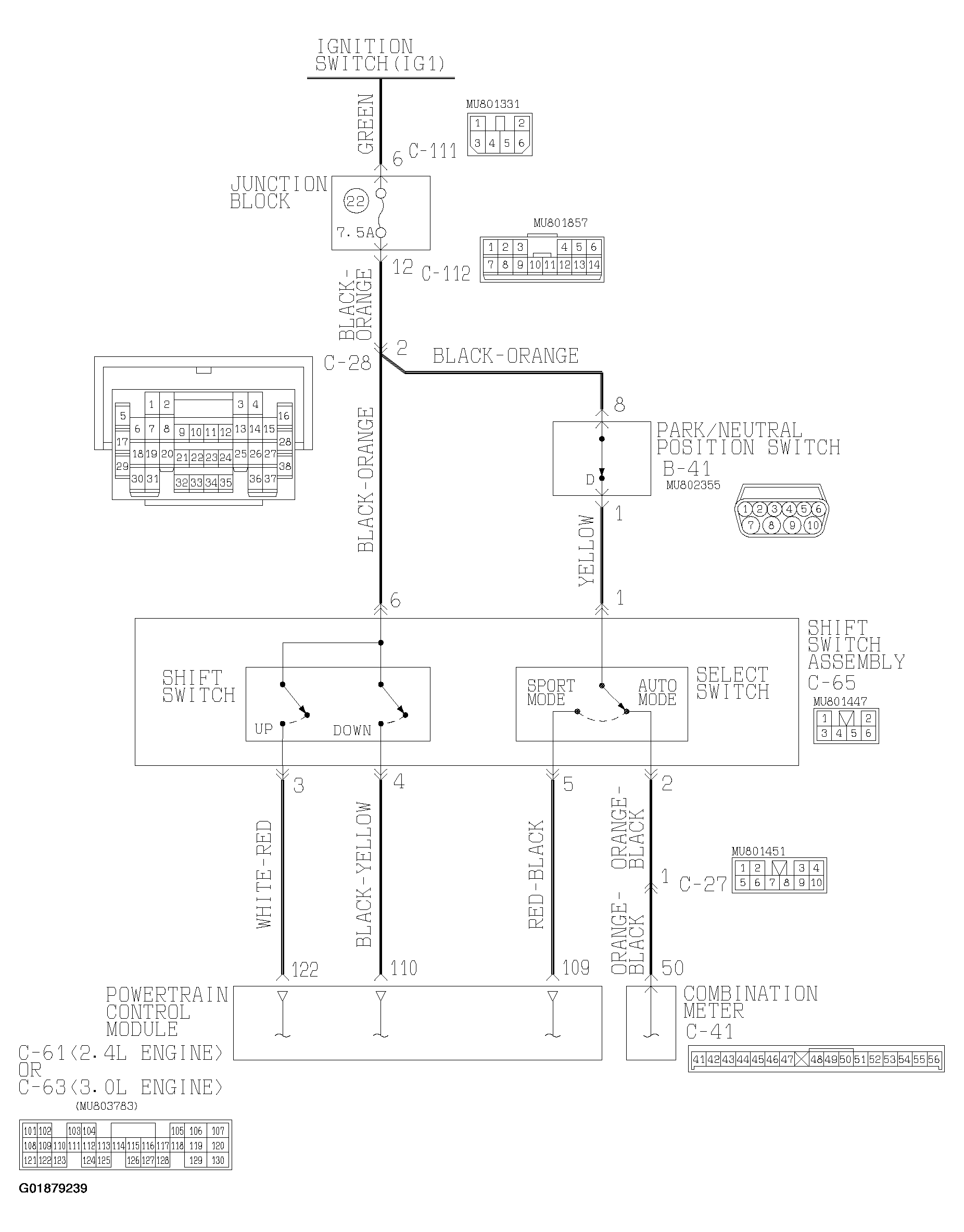

Fig 2: Shift Switch Assembly System Circuit Diagram (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Shift Switch Assembly System Circuit Diagram (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
