< 2.4L Engine > Upshift Pattern

NOTE: Within 2-to-3 and 3-to-4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.

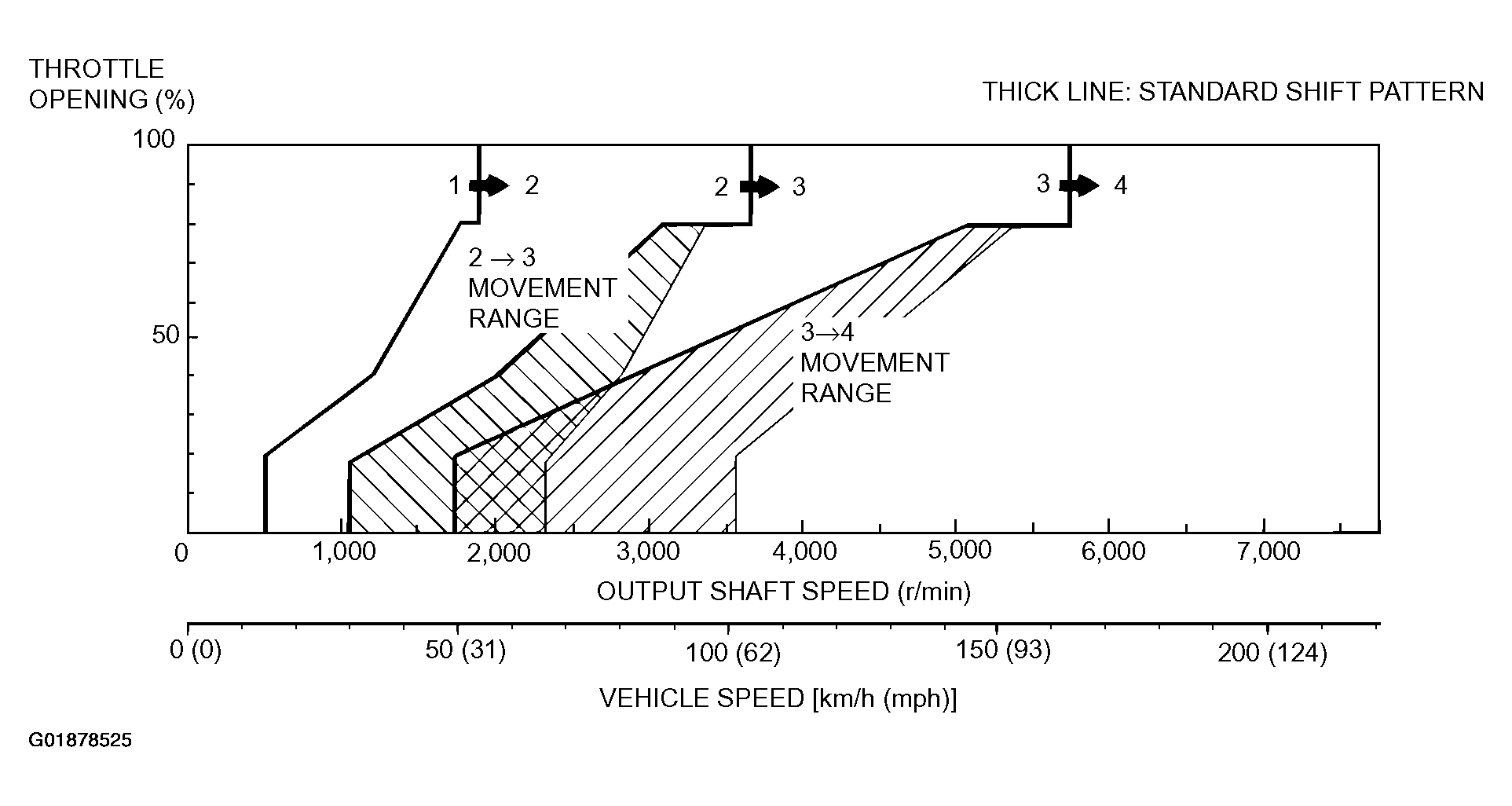

Fig 1: 2.4L Engine Shift Pattern Control (Upshift Pattern)
G01878525Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
