A/T Control Relay Check

  1. Remove the A/T control relay.
  2. Use jumper wires to connect the A/T control relay terminal 2 to the positive battery terminal and terminal 3 to the negative battery terminal.
  3. Check the continuity between terminal 1 and terminal 4 of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

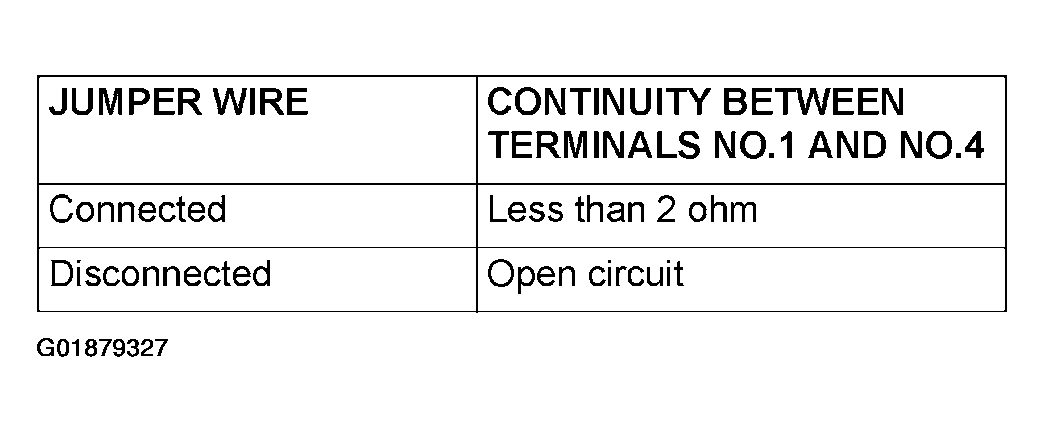

    Fig 1: A/T Control Relay Check Table
    G01879327Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

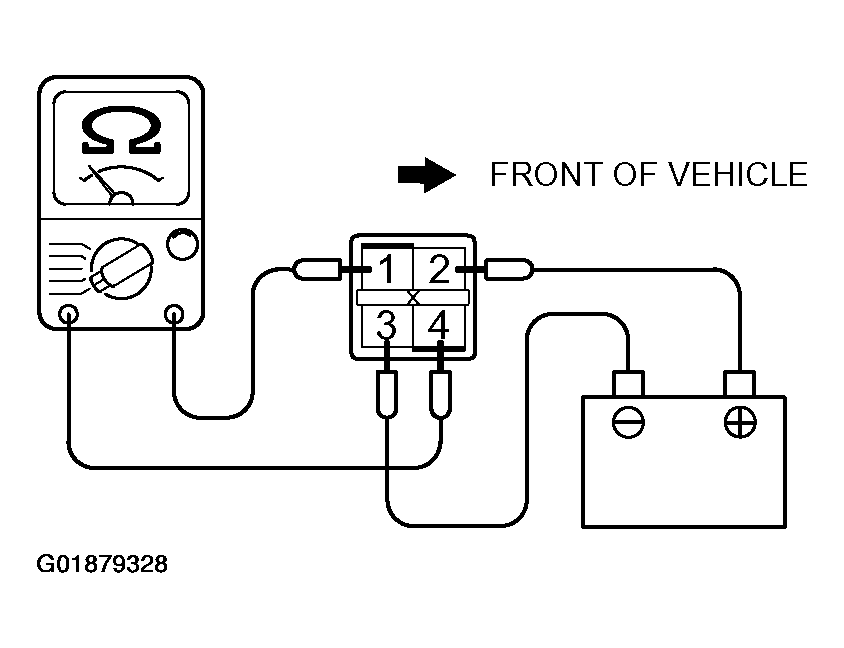

    Fig 2: Checking A/T Control Relay
    G01879328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If there is any problem with the A/T control relay, replace it.
