>> A << Transaxle Assembly Installation

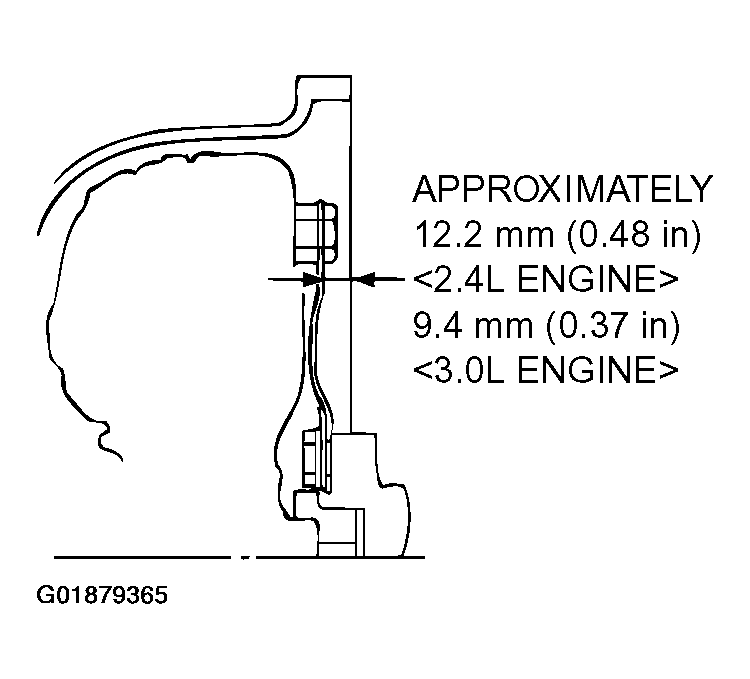

Inserting the torque converter into the transaxle oil pump so that the shown dimension is approximately. 12.2 mm (0.48 inch) < 2.4L Engine >, approximately 9.4 mm (0.37 inch) < 3.0L Engine >. Install the transaxle assembly to the engine.
