<< C >> Engine Assembly Supporting

< Engine lifter MZ2073827 is used >
Set special tools MB991453 and MZ203827 to the vehicle to support the engine assembly.

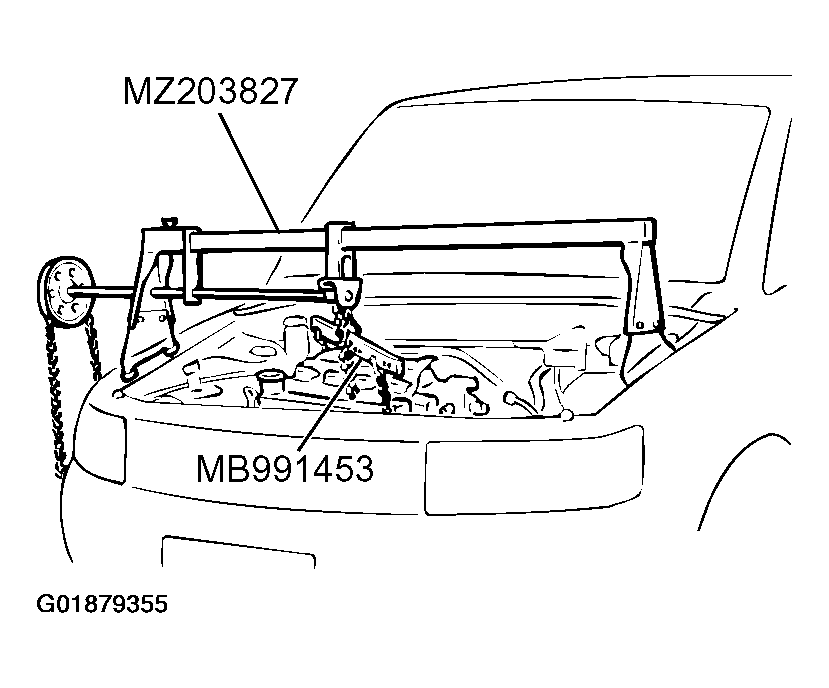

Fig 1: Identifying Set Special Tools MB991453 And MZ203827
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger MB991895 is used >
1. Set special tool MB991895 to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown in illustration.

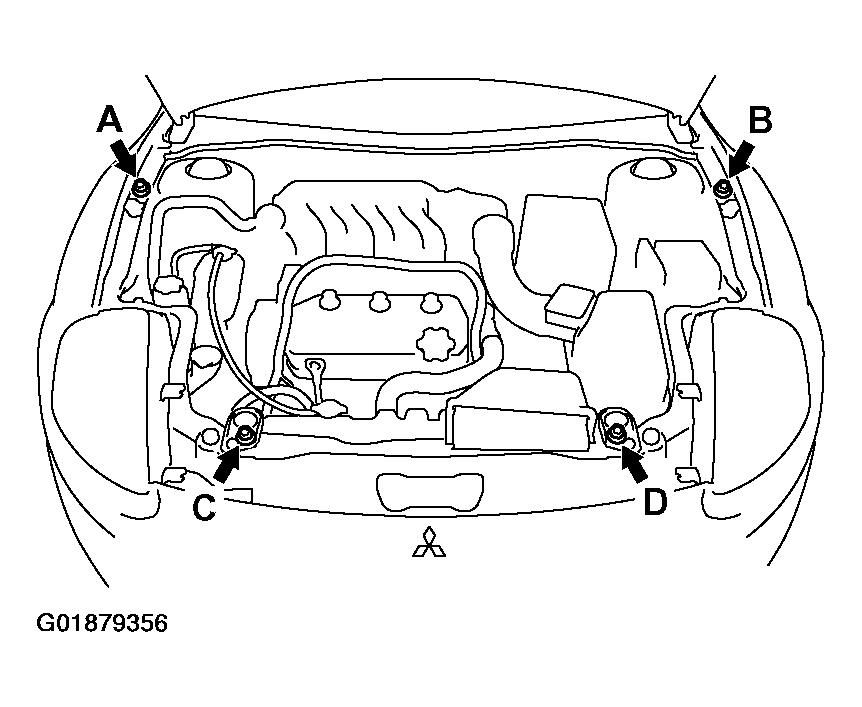

  Fig 2: Locating Front Fender Mounting Bolts (A & B) And Radiator Support Upper Insulator Mounting Bolts (C & D)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

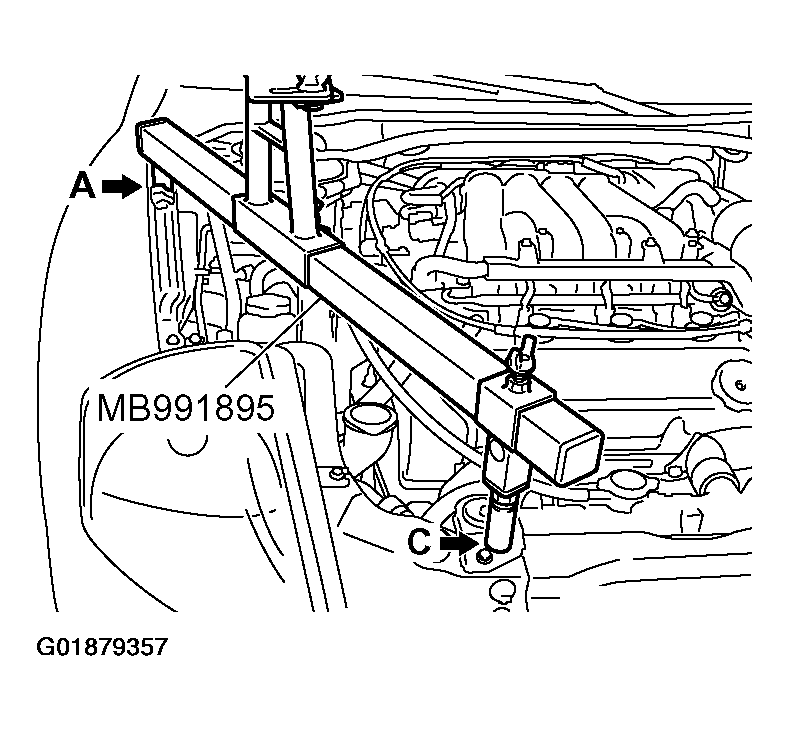

  Fig 3: Setting Special Tool MB991895 To Mounting Bolts (A & C)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

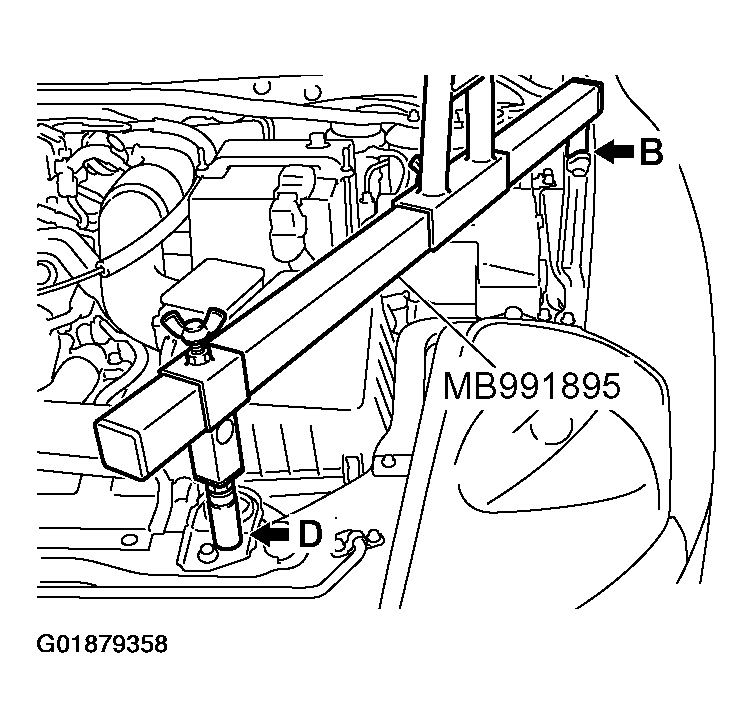

  Fig 4: Setting Special Tool MB991895 To Mounting Bolts (B & D)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tools MB991454 and MB991895 to hold the engine/transaxle assembly.

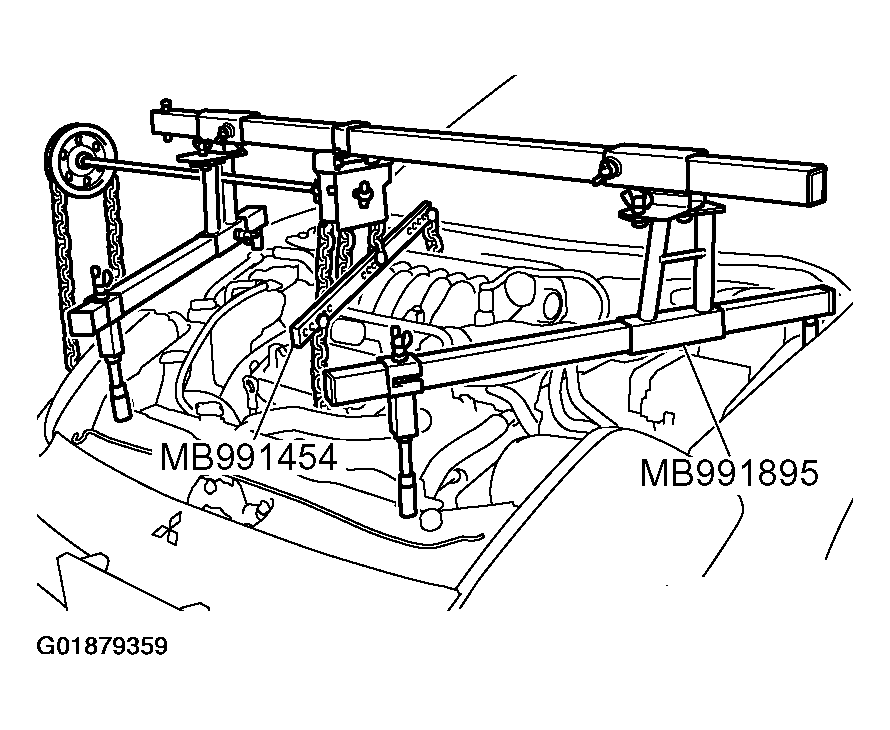

  Fig 5: Setting Special Tools MB991454 & MB991895 To Holding Engine/Transaxle Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
