Disassembly And Assembly: Notes

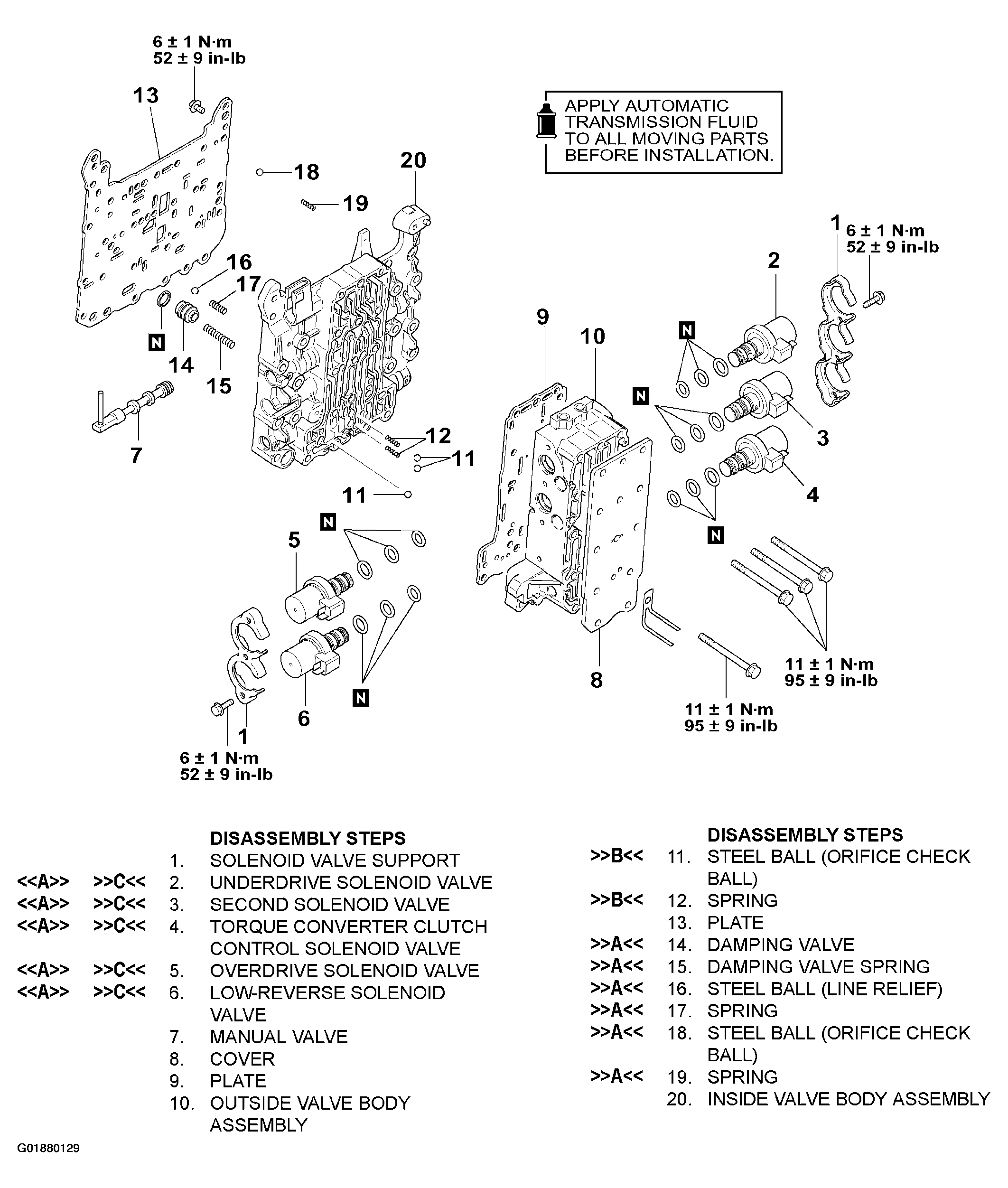

Fig 1: Exploded View Of Valve Body (1 Of 3)
G01880129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

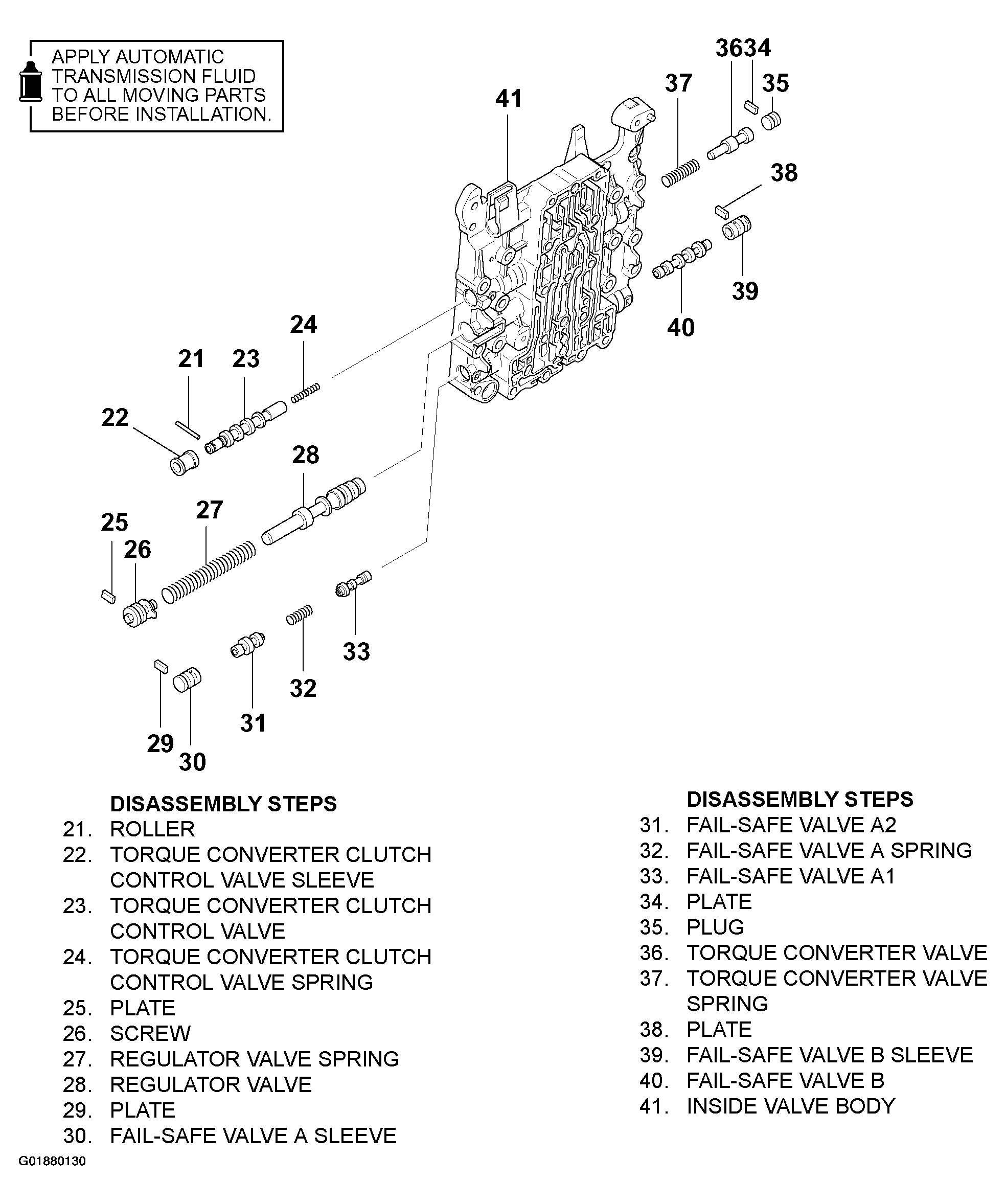

Fig 2: Exploded View Of Valve Body (2 Of 3)
G01880130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

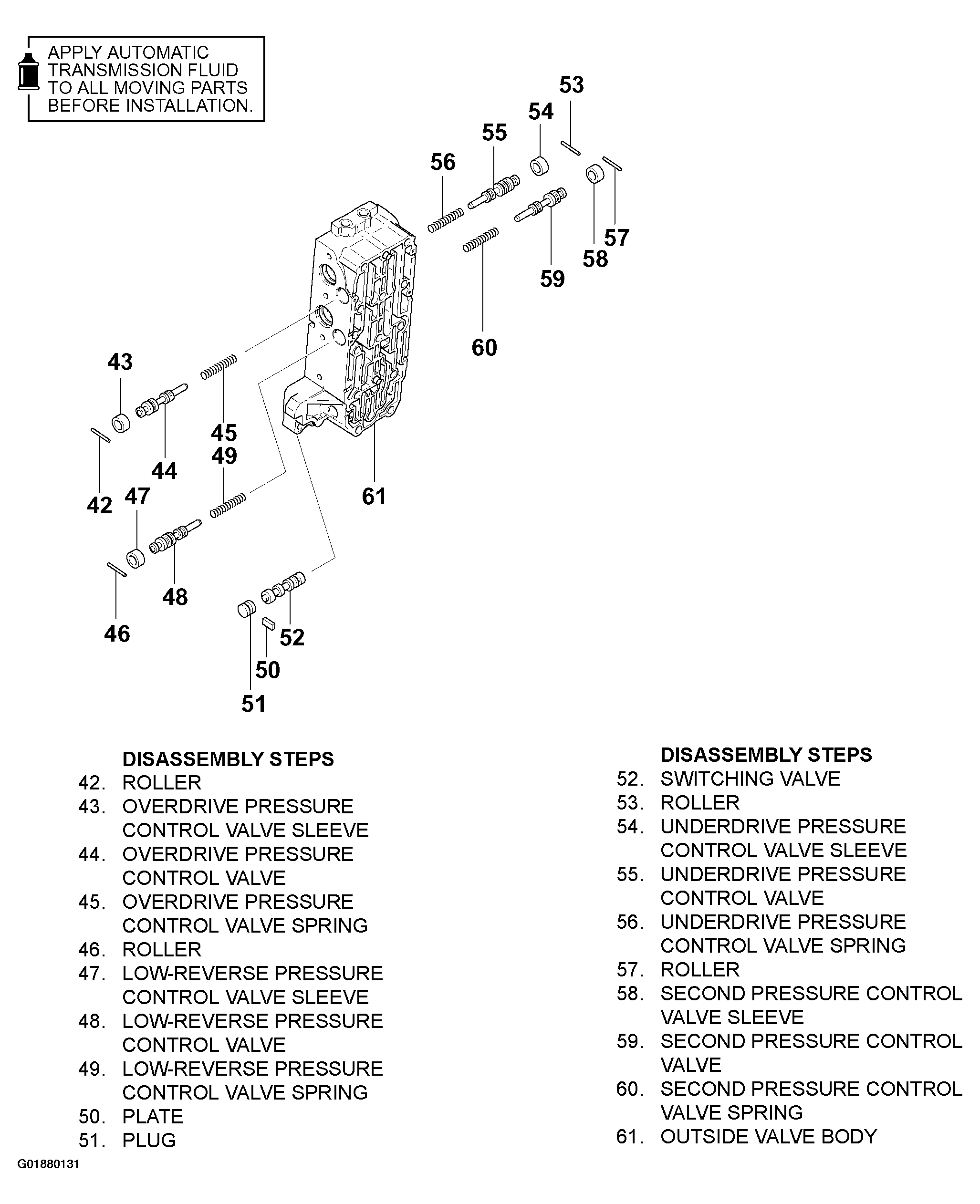

Fig 3: Exploded View Of Valve Body (3 Of 3)
G01880131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
