INSPECTION PROCEDURE E-1: Keyless Entry System: Keyless Entry System does not Operate.: Notes

NOTE: This troubleshooting requires use of scan tool MB991502 and SWS monitor kit MB991862. For details of how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR " .

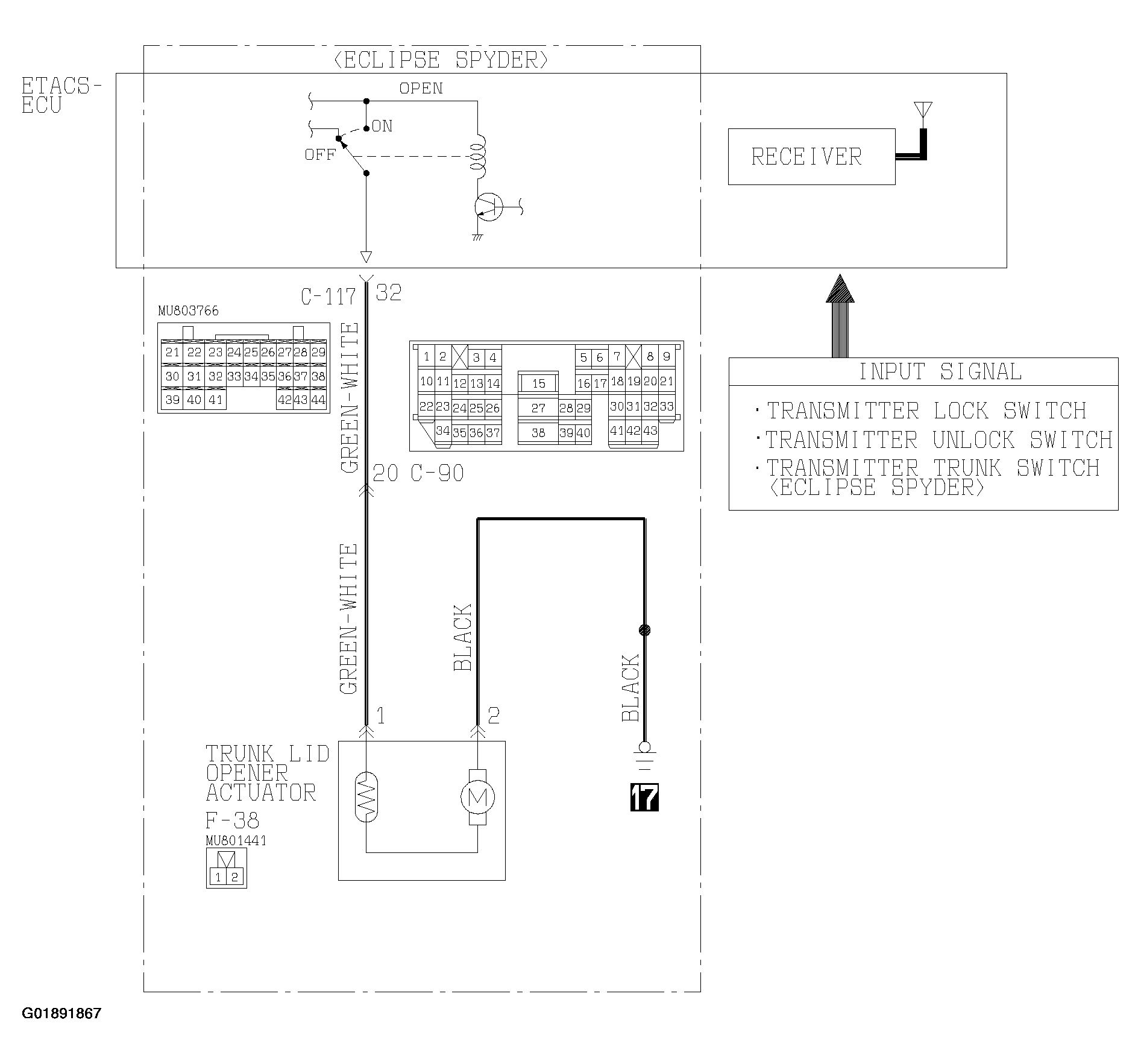

Fig 1: Inspection Procedure E-1 Transmitter Input Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
