DTC 17: Throttle Position Sensor System: Notes

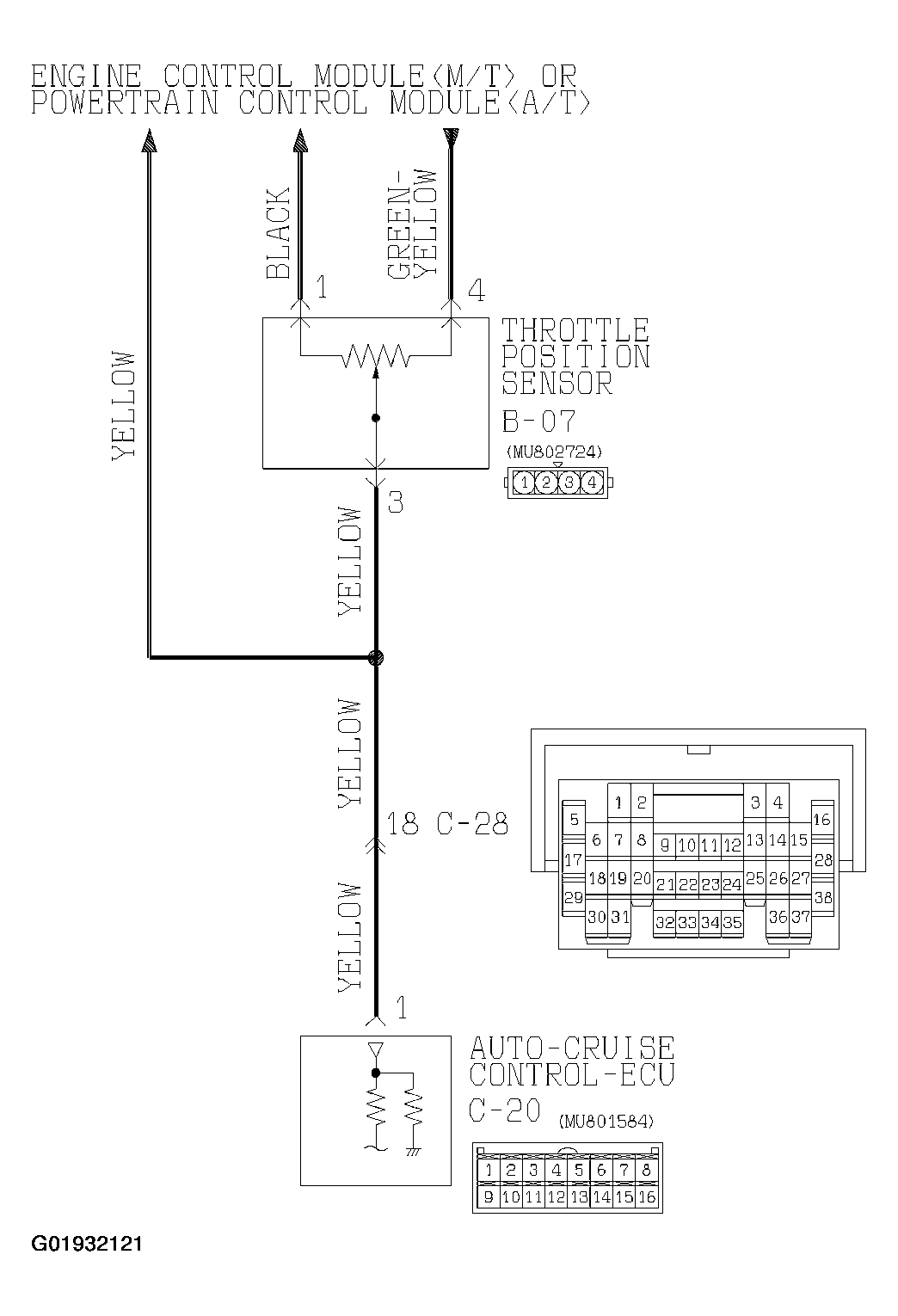

Fig 1: DTC 17 Throttle Position Sensor System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

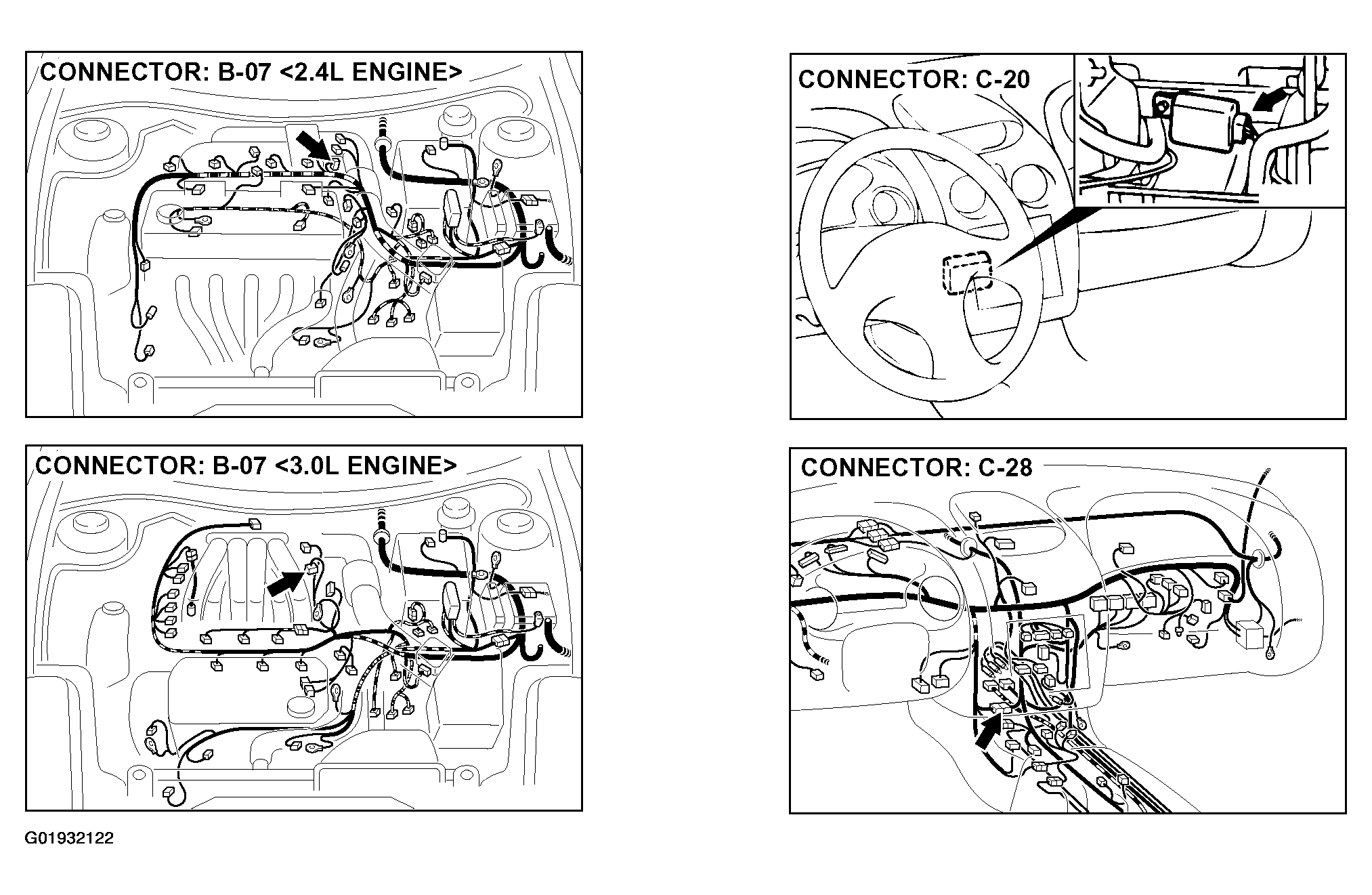

Fig 2: DTC 17 Throttle Position Sensor System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
