INSPECTION PROCEDURE 1: Communication with Scan Tool MB991502 is Impossible: Notes

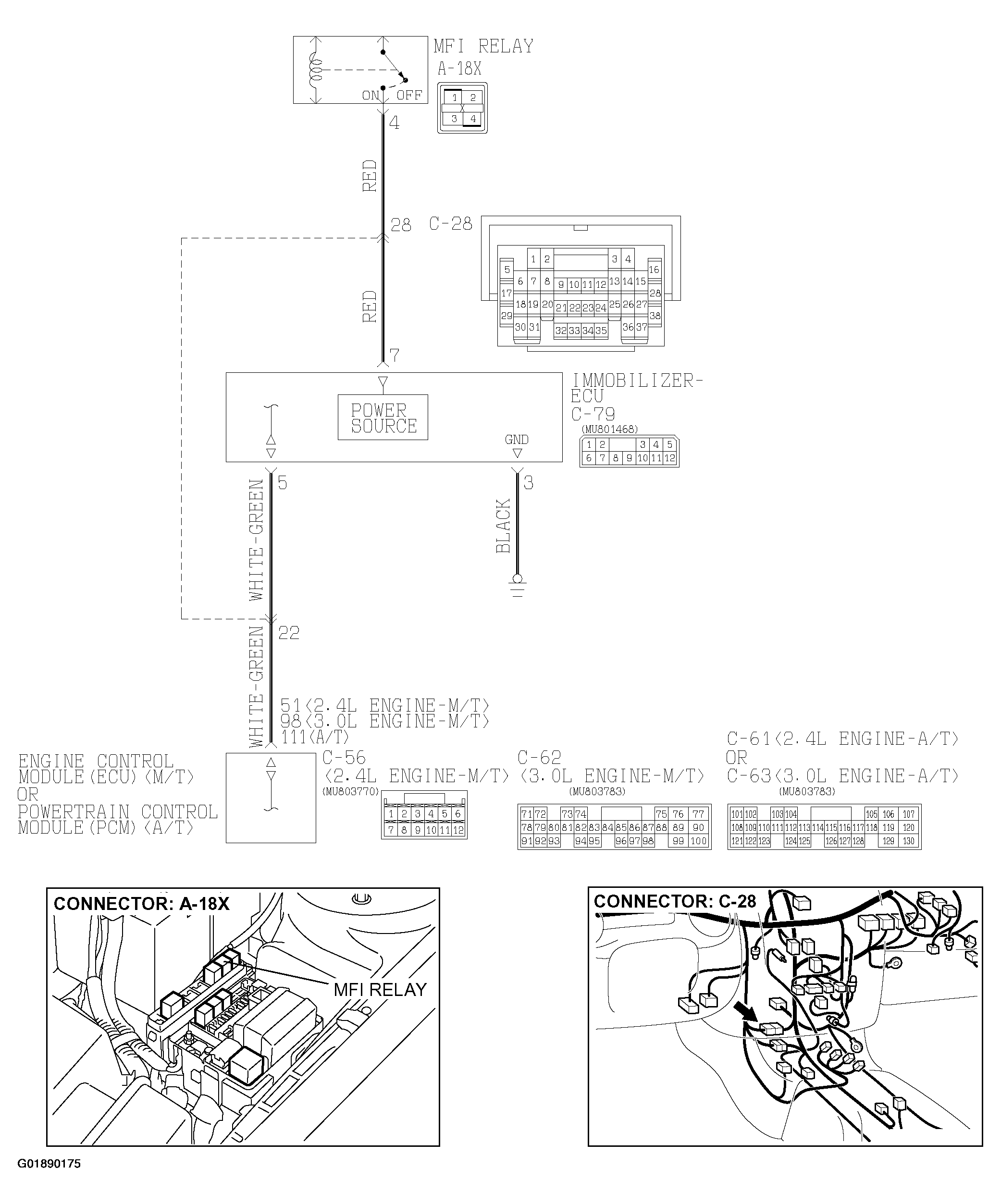

Fig 1: Immobilizer-ECU Power Supply, Ground and ECM (M/T) or PCM (A/T) Communication Line Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

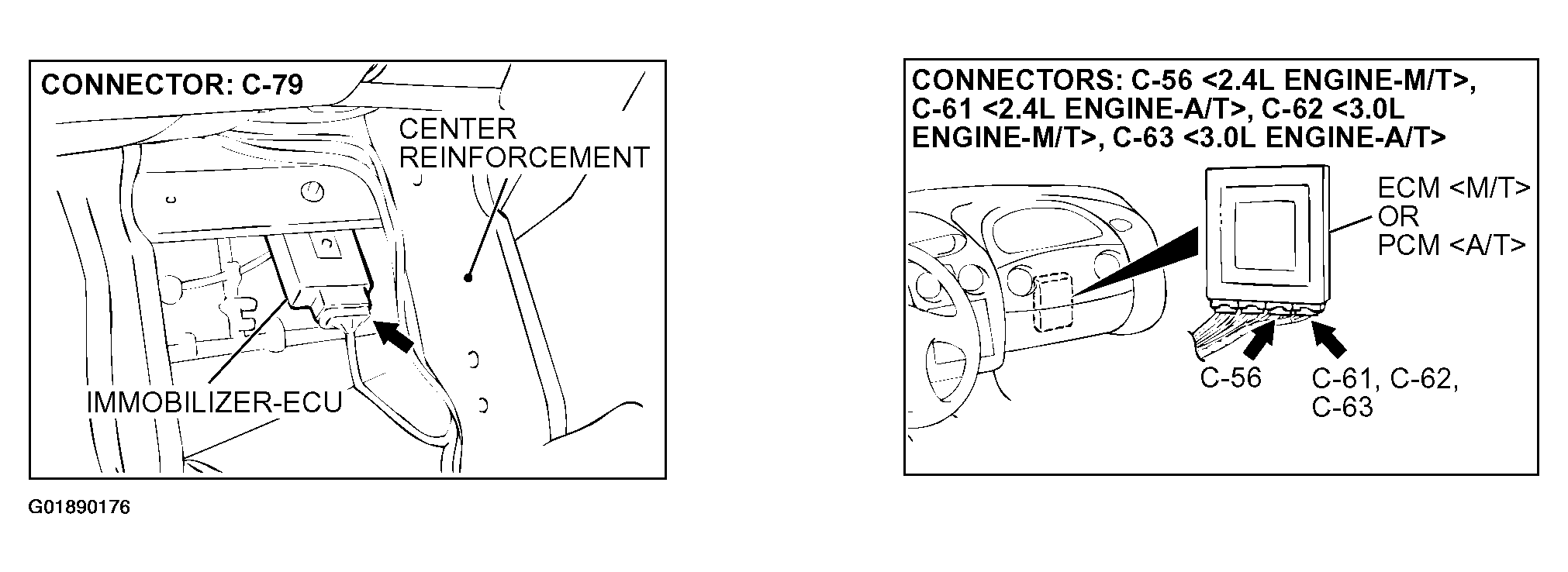

Fig 2: Immobilizer-ECU Power Supply, Ground and ECM (M/T) or PCM (A/T) Communication Line Component Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
