INSPECTION PROCEDURE 1: None of the Quarter Windows are Open or Close.: Notes

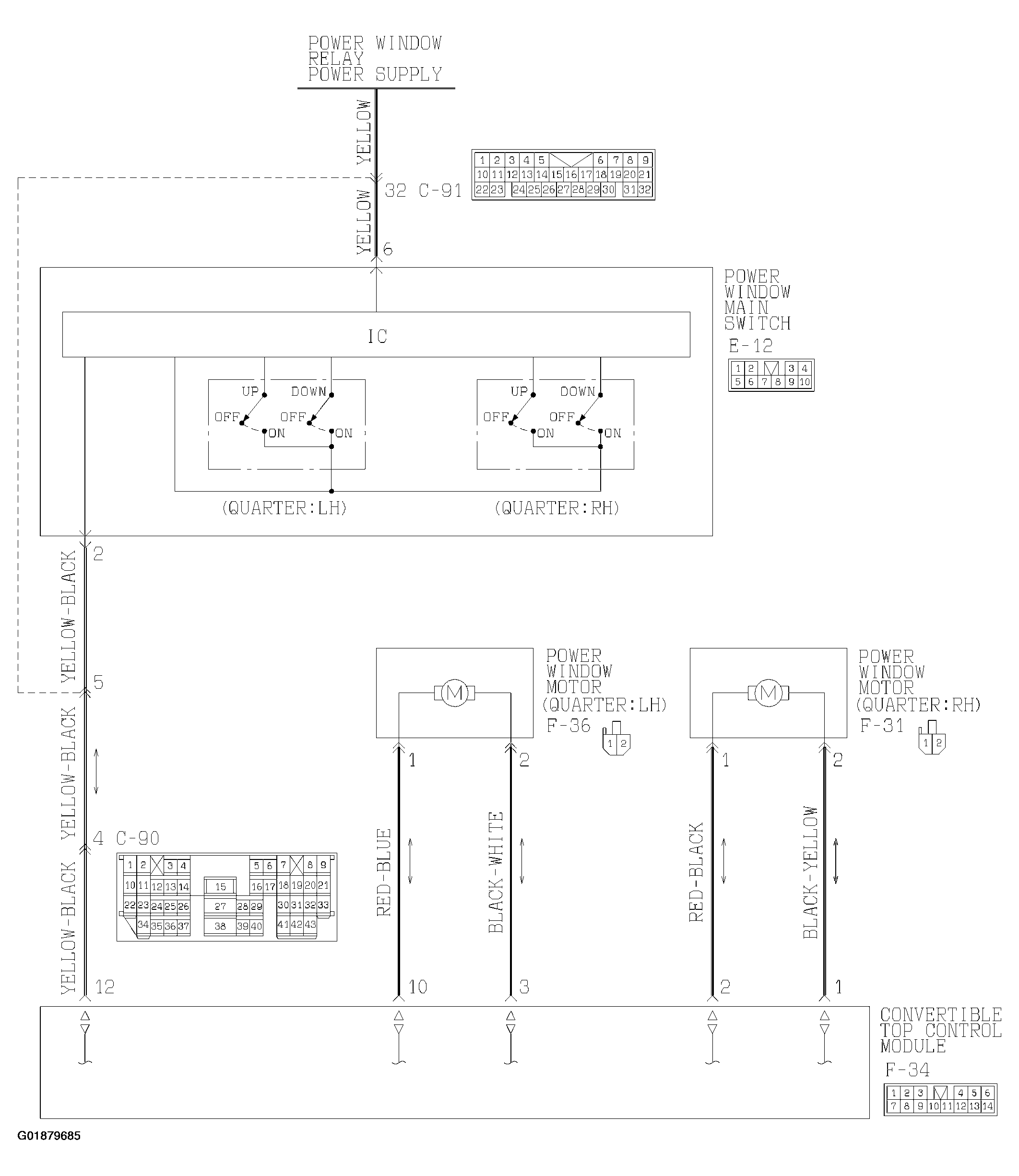

Fig 1: Quarter Window Regulator Motor Drive Circuit Diagram (1 Of 2)
G01879685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Quarter Window Regulator Motor Drive Circuit Diagram (2 Of 2)
G01879686Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
