INSPECTION PROCEDURE 3: Only the Quarter Window < RH > does not Open and Close.: Notes

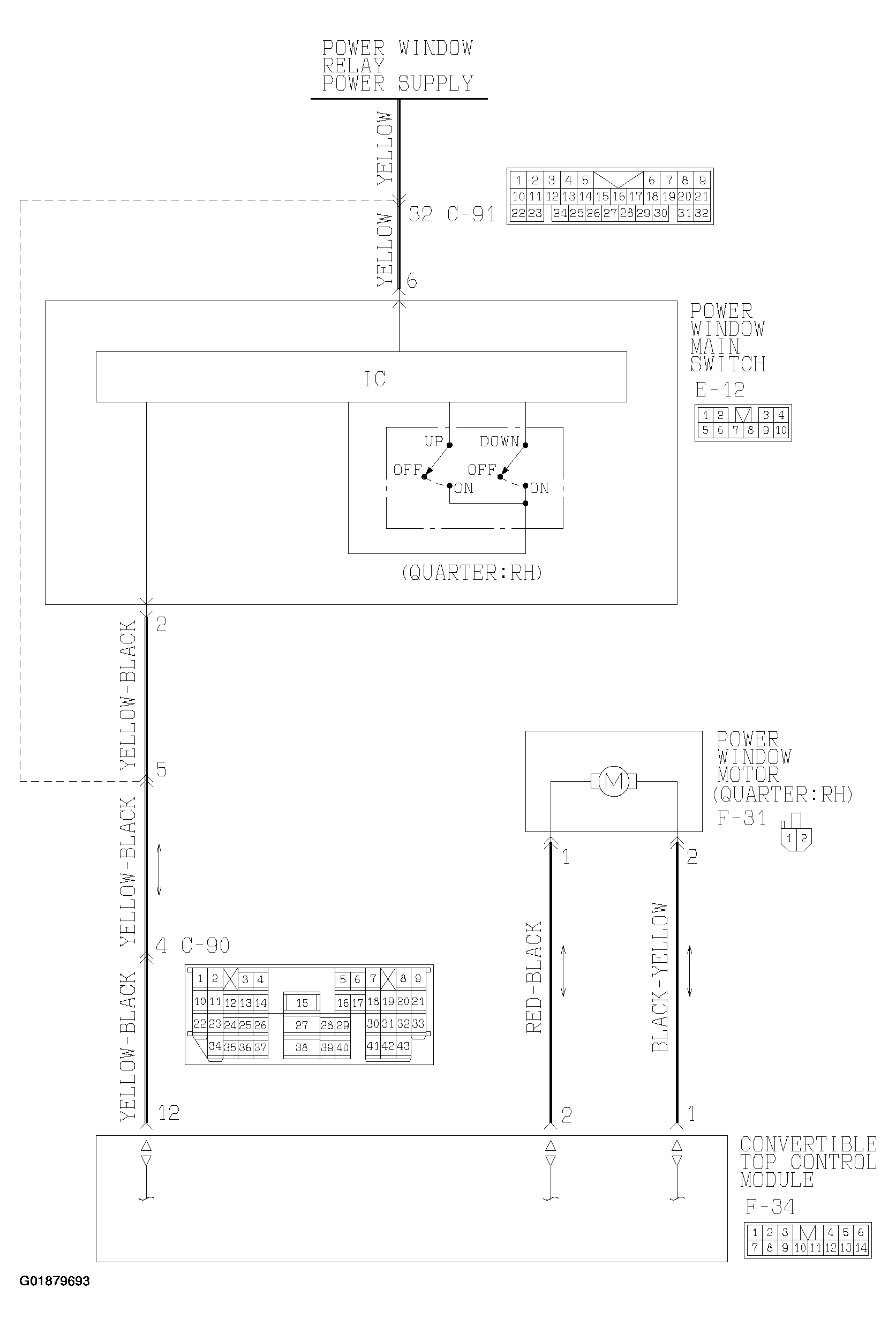

Fig 1: Quarter Window Regulator Motor < RH > Drive Circuit Diagram (1 Of 2)
G01879693Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

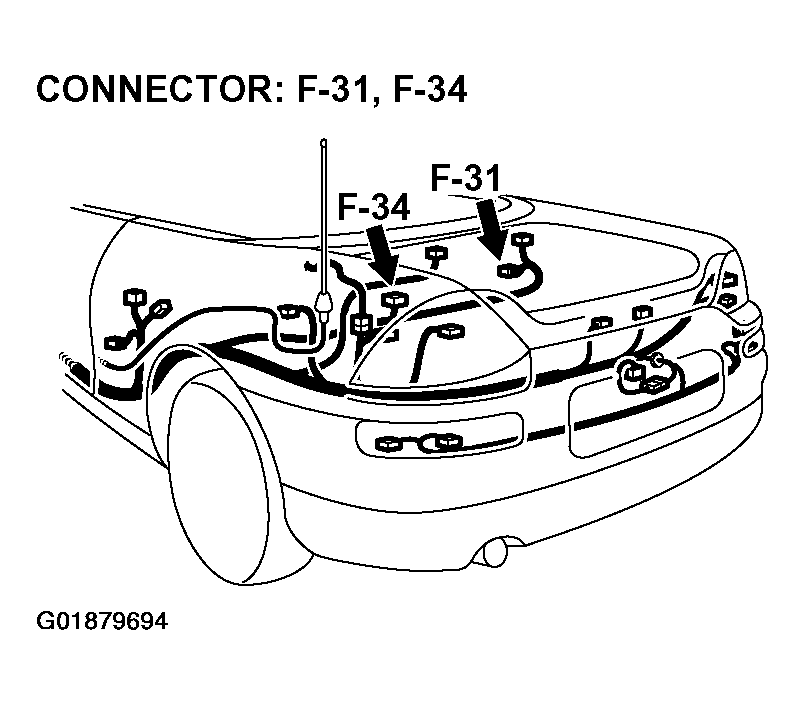

Fig 2: Quarter Window Regulator Motor < RH > Drive Circuit Diagram (2 Of 2)
G01879694Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
