Generators & Regulators: Overhaul: Generator: Notes

For 2.4L disassembly procedures, see Fig 1 . For 3.0L disassembly procedures, see Fig 2 .

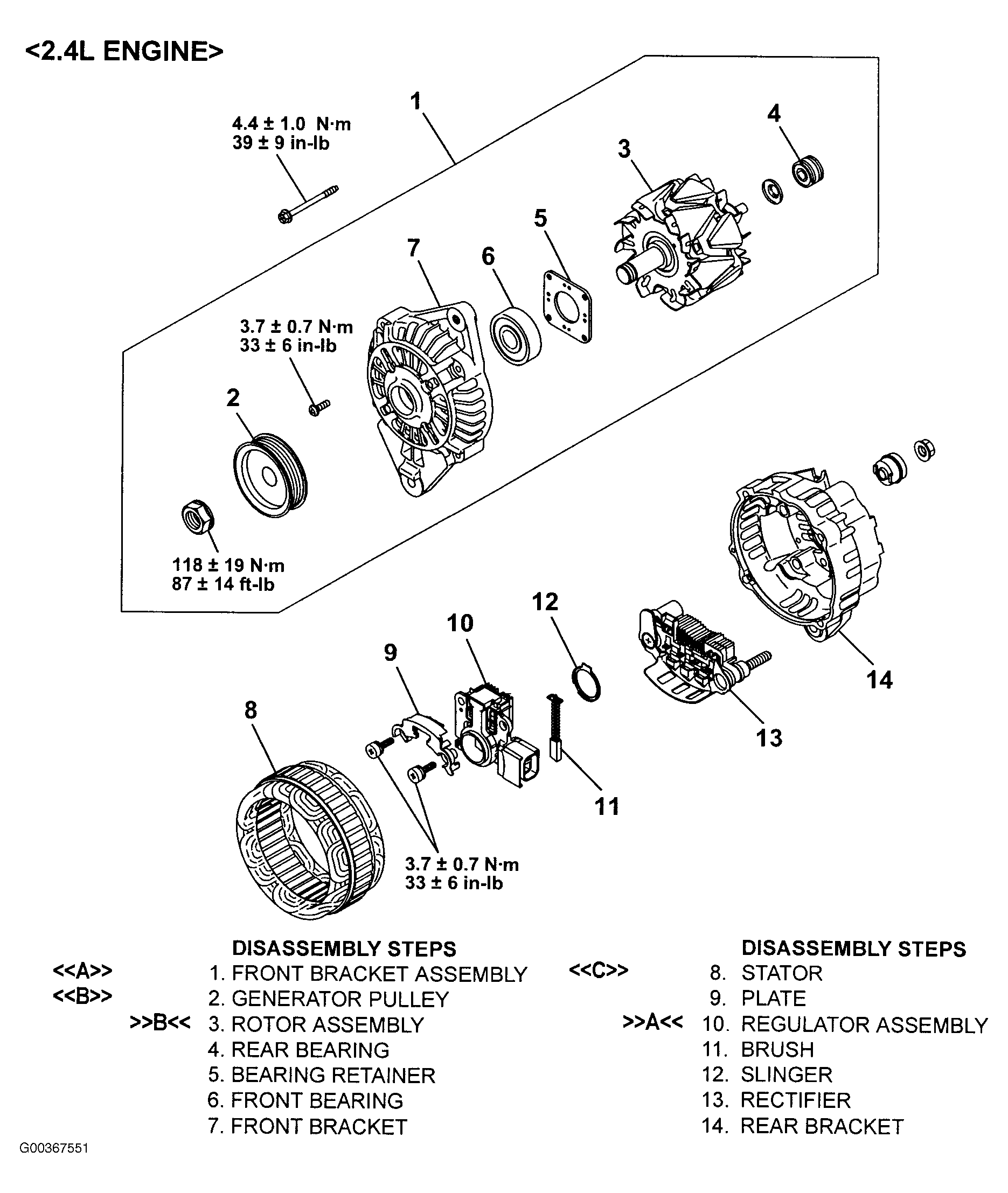

Fig 1: Generator Disassembly & Assembly (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Disassembly & Assembly Procedures (3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
