Power Window Main Switch Connector End View (Eclipse)

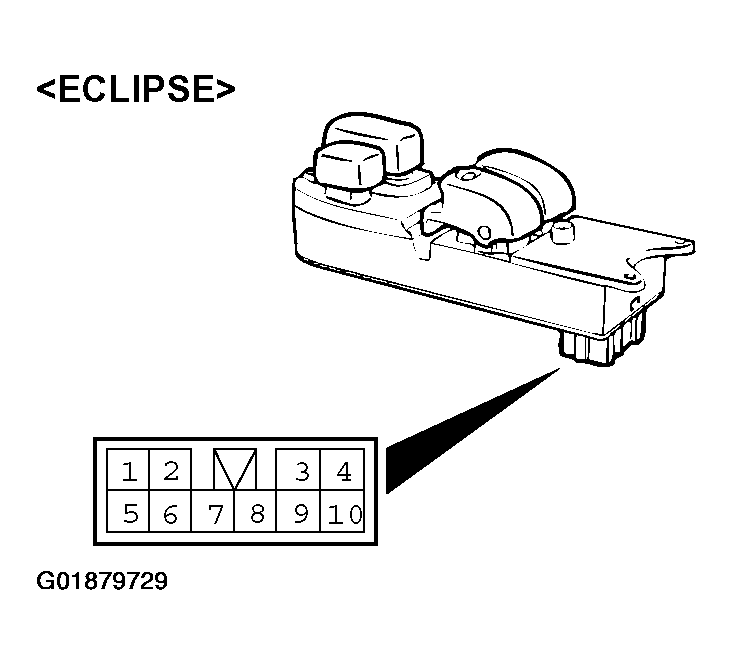

Fig 1: Power Window Main Switch Connector End View (Eclipse)
G01879729Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
