>>E<< Spring Pin Installation

Drive in the spring pin so that the slit is in the direction shown in the figure.

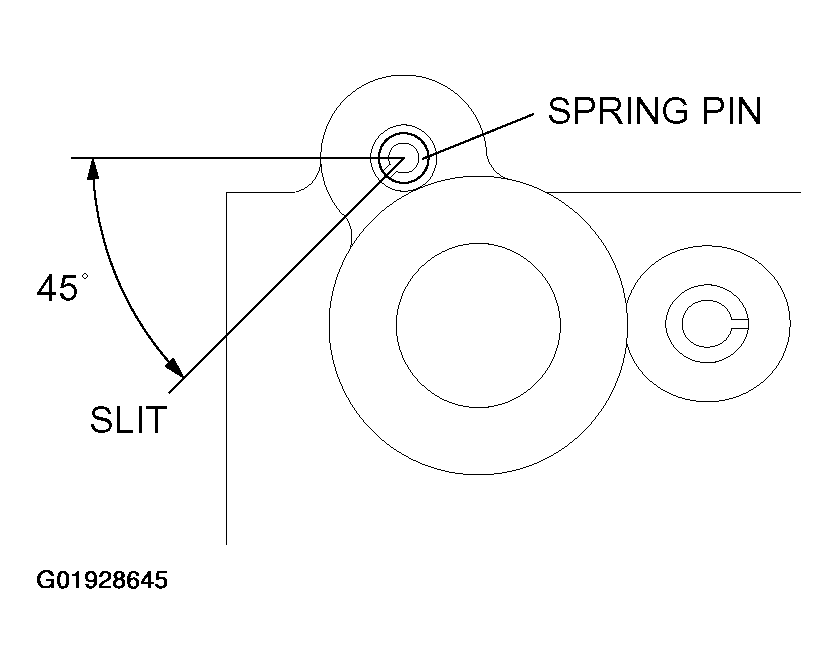

Fig 1: Identifying Slit Direction
G01928645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
