>>D<< Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the synchronizer ring and outer synchronizer ring < F5M51 >.

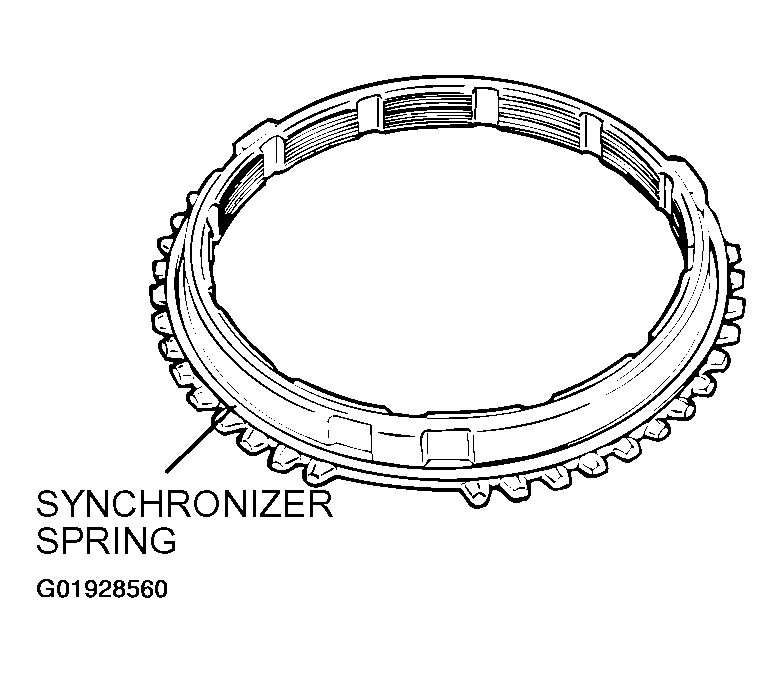

Fig 1: Installing Synchronizer Spring To Synchronizer Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

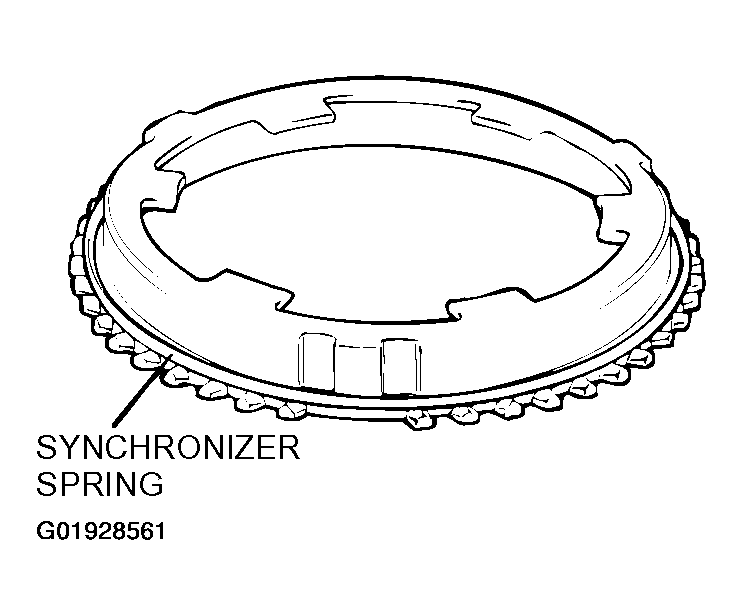

Fig 2: Installing Synchronizer Spring To Outer Synchronizer Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
