>>F<< Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the outer synchronizer ring.

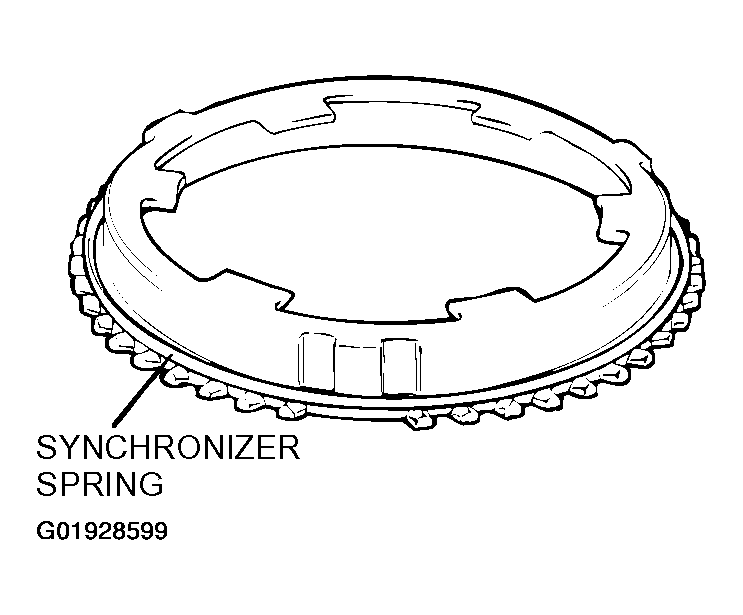

Fig 1: Installing Synchronizer Spring
G01928599Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
