>>N<< Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the synchronizer ring.

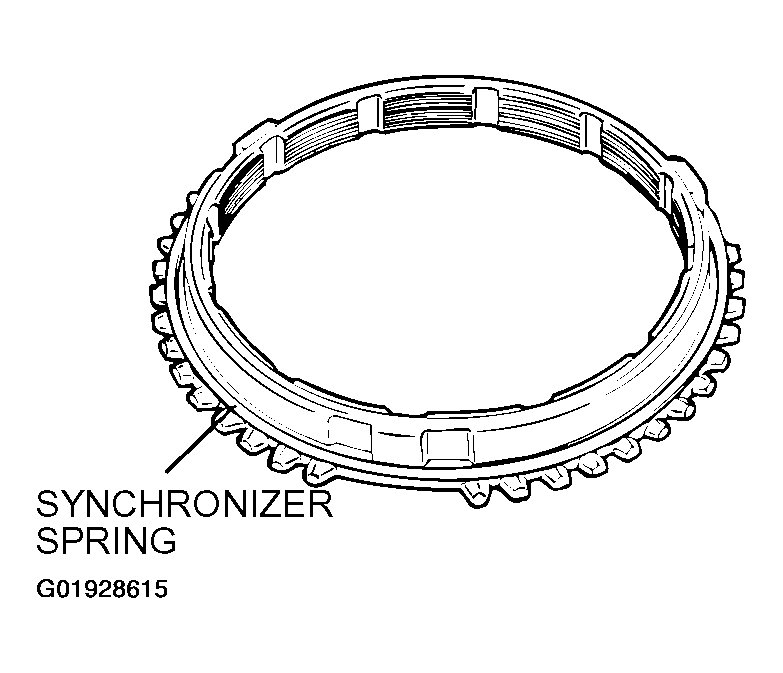

Fig 1: Installing Synchronizer Spring
G01928615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
