Auto-cruise Control Check

Measure the resistance between the terminals when each of the "SET," "RESUME," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

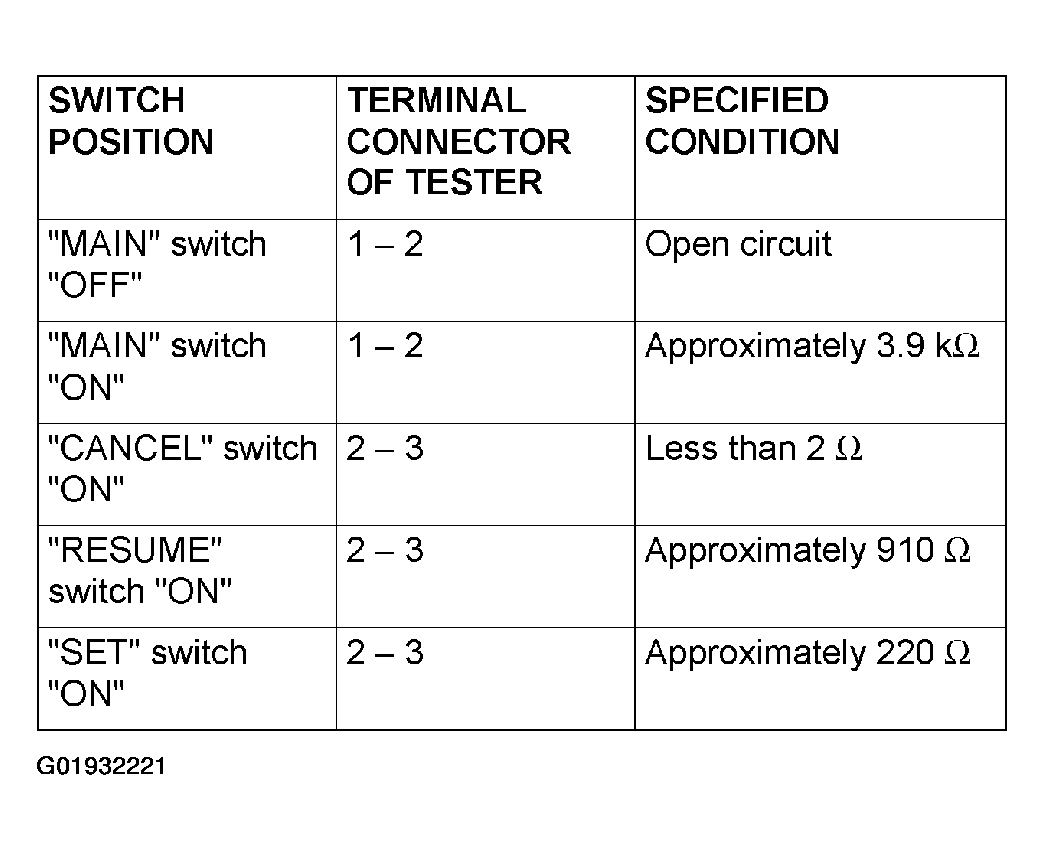

Fig 1: Auto-Cruise Control Switch Terminals Resistance Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

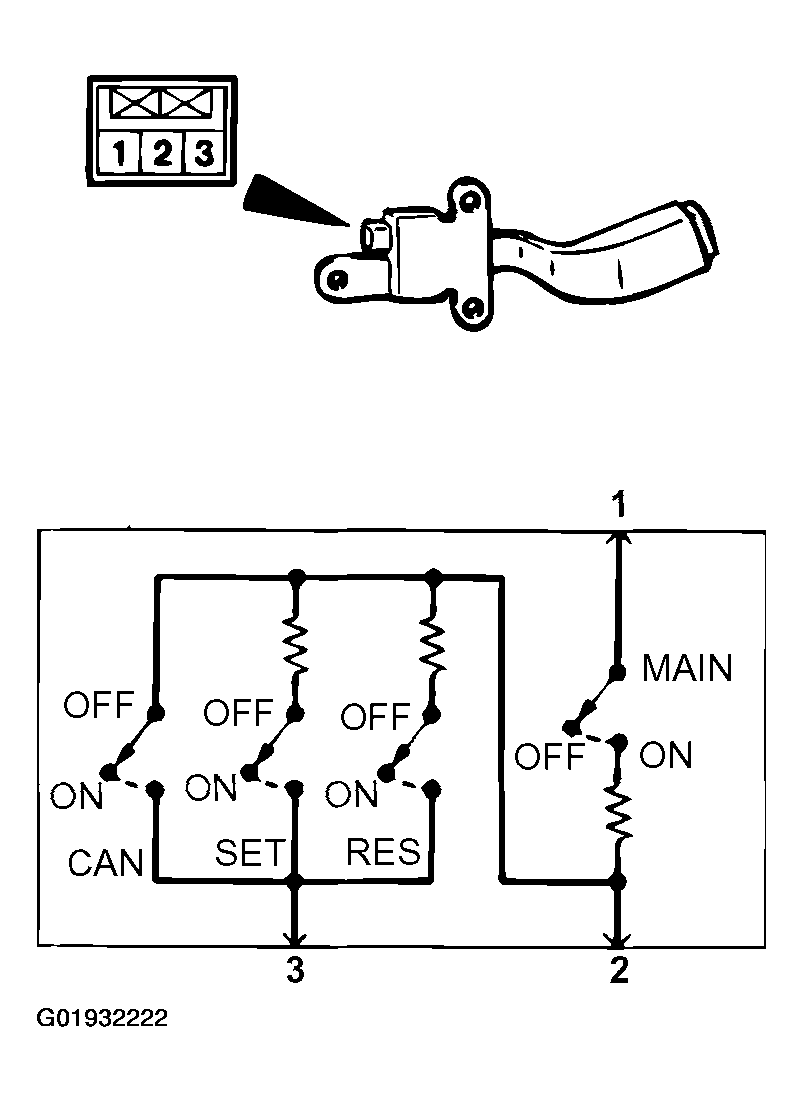

Fig 2: Checking Auto-Cruise Control

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
