Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

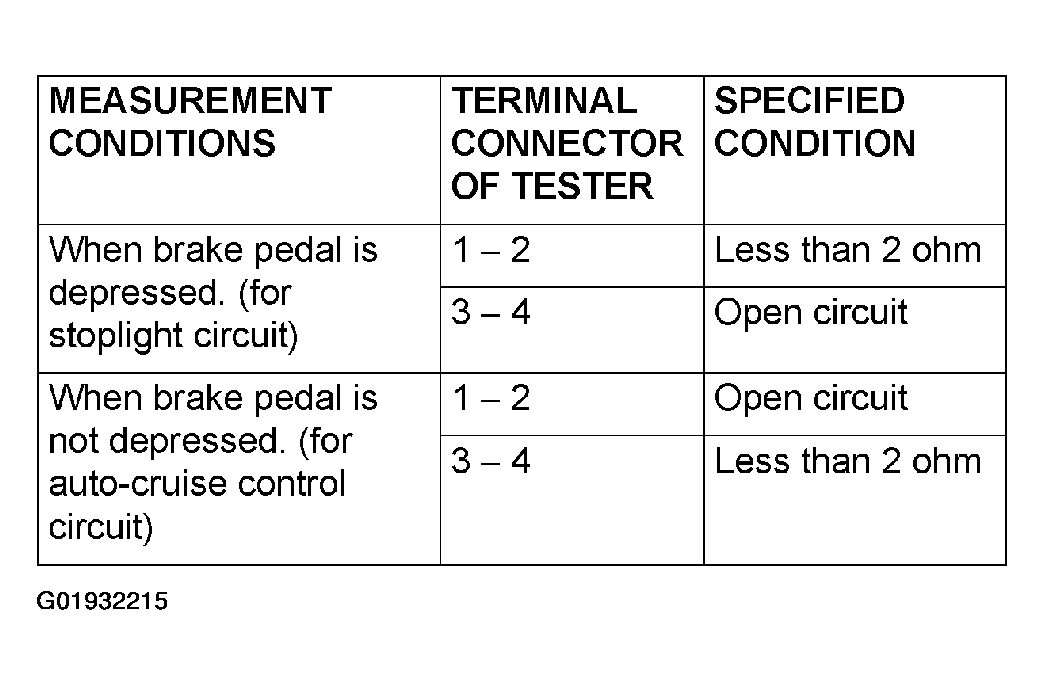

    Fig 1: Stoplight Switch Terminals Continuity Reference Table
    G01932215Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

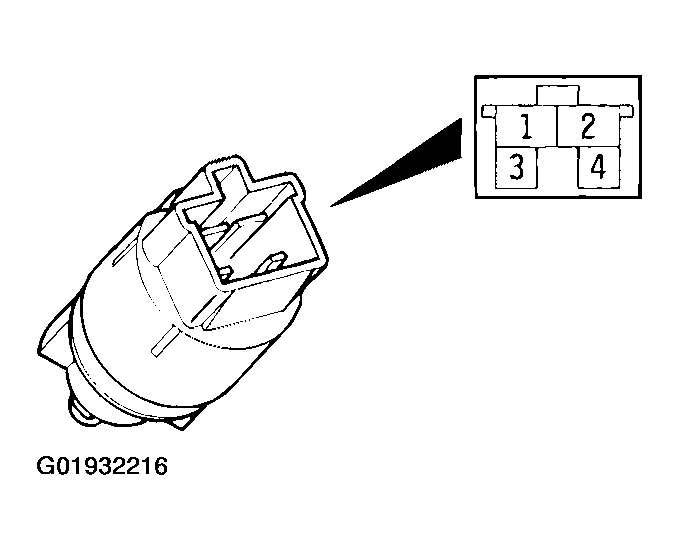

    Fig 2: Identifying Stoplight Switch Terminals
    G01932216Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
