Removal And Installation <2.4L Engine>

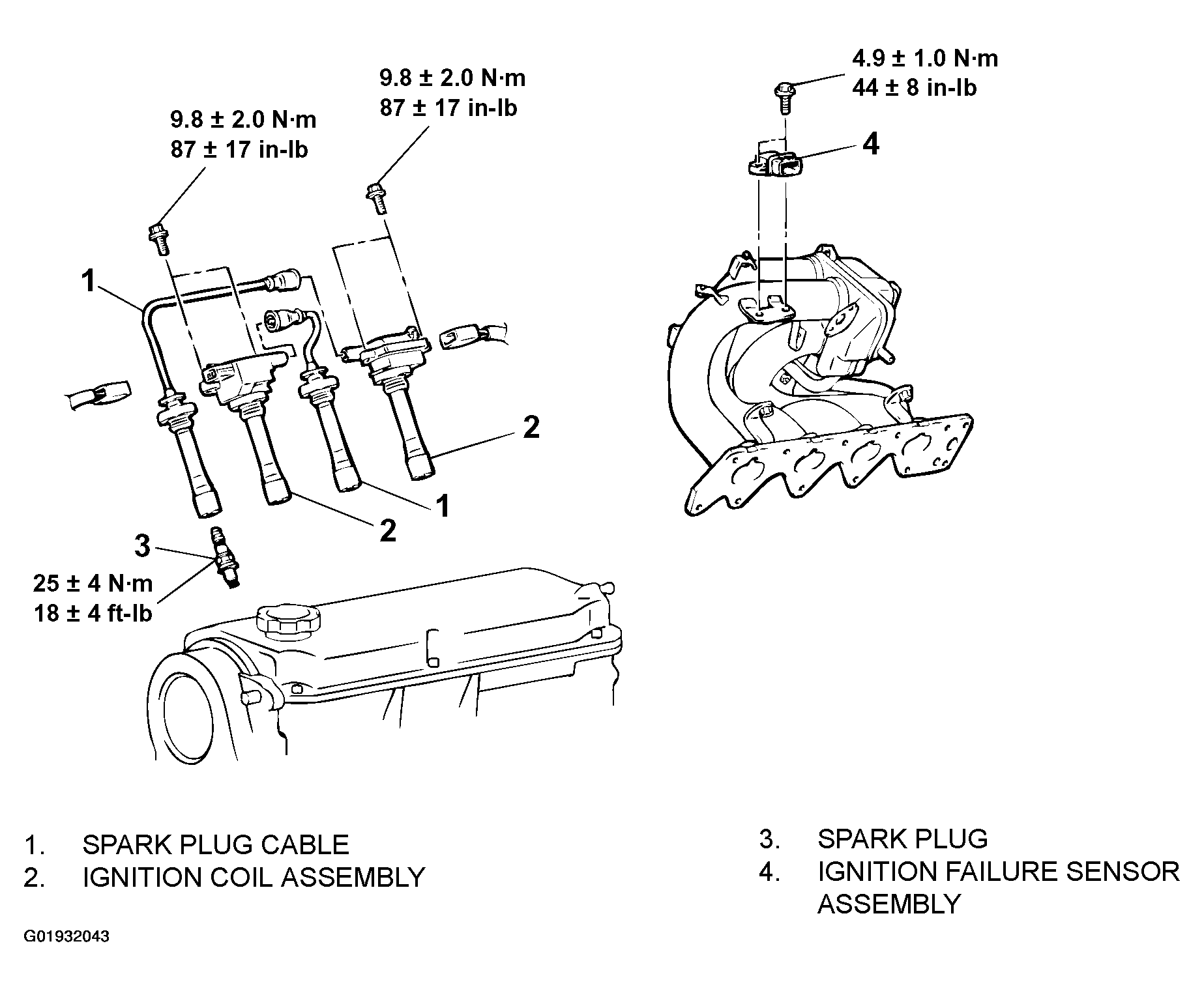

Fig 1: Removing Ignition Coil And Torque Specifications - 2.4L Engine
G01932043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
